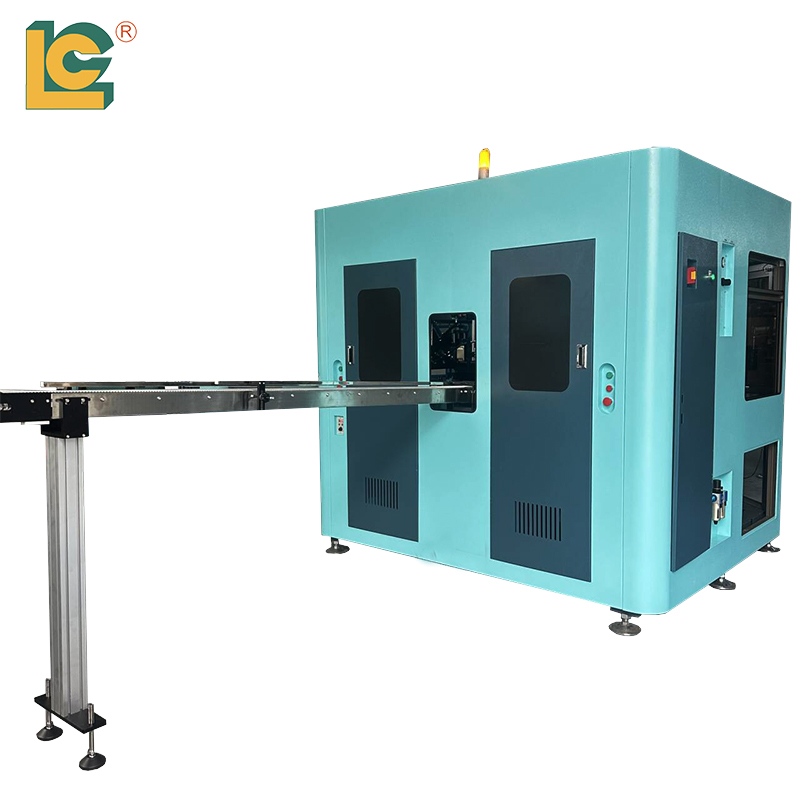

2 color fully automatic CNC screen printing machine with taper swing
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 UNIT
2 color fully automatic CNC screen printing machine with taper swing
Fully servo-controlled automatic screen printing machine for plastic or glass bottles jars cups tubes container
It can screen print from 1 to 17 colours
The machine Include Feeding conveyor belt + flame treatment + CCD image positioning + 2 UV screen printing + 2 UV curing+ unloading conveyor belt Loading from top to bottom, the machine can adjustable printing angle（Servo motor taper swing，The taper bottle can be swung back and forth using a servo motor.）
Specification
| Model No.: | LC-CNC208D |
| Printing color: | 2 Colors |
| Printing speed: | 2700-3000 pcs/h |
| Max Product size: | round diameter 100mm, length 300mm |
| Applicable products: |
Round ,Square,Oval and other special shape glass plastic bottles, jars,cans ,cups |
| Left and right stroke of scraper: | 355 mm |
| Scraper, oil return knife up and down stroke: | Cylinder control 20mm, adjustable screw stroke 50mm |
| Compressed air: | 5-6 bar |
| Power supply: | 380V/50HZ |
| Total power: | 31 KW |
Feature
1.Auto loading and unloading with multi axis servo robot.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
Machine Details

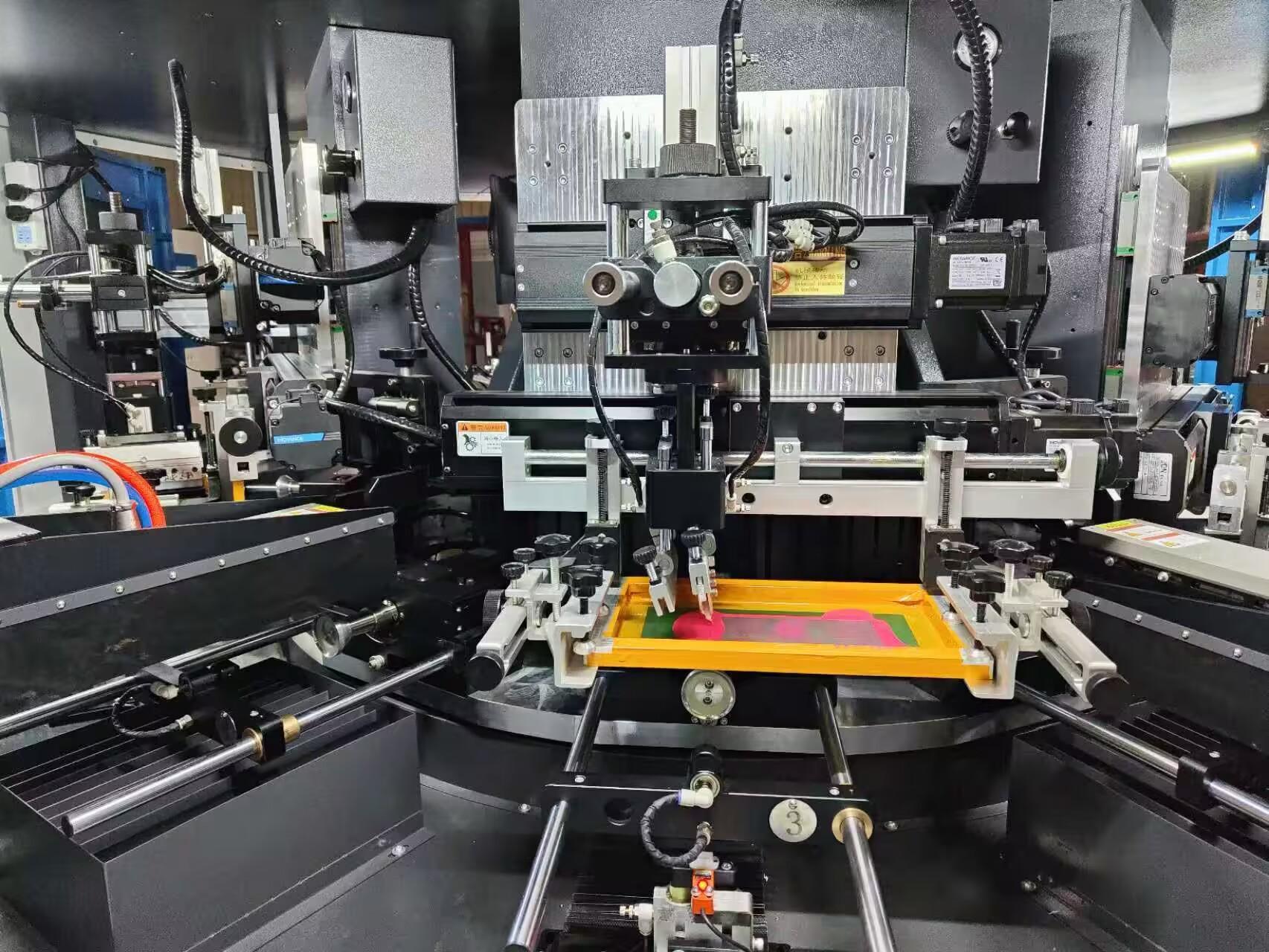

turntable printing
Loading and unloading manipulator
Printing Sample
Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 60 Days
Standards Certificate︰ CE
Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C
Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
Free Fittings ︰ Squeege + screen flame
