120AL Automatic Plastic Bottle Screen Printing Machine

Model No.︰LC-120AL-1
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 UNIT

Product

Contect Us

Product Details

120AL Automatic Screen Printing Line

LC-120AL-1 it is a full mechanical conveyer, With the touching control panel operation, easy to operate the machine. Fast adjustment, easy operation. Fast printing, speed: 4000pcs/hr

The following is the machine main parts

1. MAIN MOTOR: SITI(Italy)
2. PLC: Omron(Japan)
3. SENSOR: Optex(Japan)

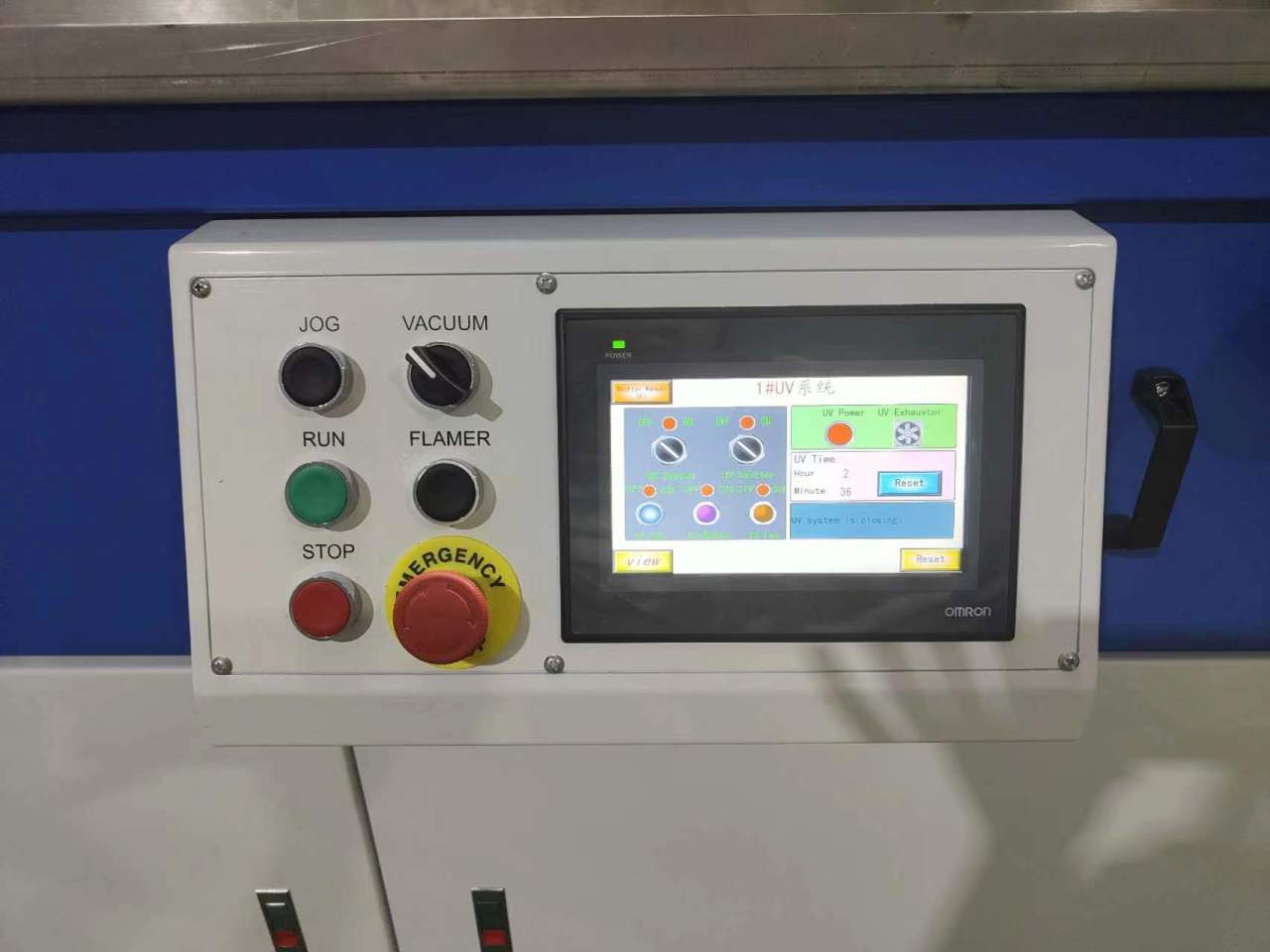

4. TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. (CONTACTOR):(Schneider)(France)
7.(RELAY): (Idec)(Japan)
8. (INVERTER): Omron(Japan)
9. (UV CURING)(Primarc)Britain
10. (Cylinder):Festo(Germany)

Specification

Subject surface	Oval	Round
Max speed	4000pcs/hr	3600pcs/hr
Max print length	120 mm	270 mm
Max print wide	250 mm	250 mm
The size of print	semimeter：Φ25-Φ260mm	diameter：Φ25-100mm
The size of print	Length ：60-270mm	Length ：60-270mm
The power of UV lamp	4Kw/unit
ＵＶair draft power	0.2 KW
reduction gearbox Conveyer proportion	1:7.5
Single motor power	0.75 KW
The power ofbottle liftervacuum motor	0.5 KW
Power supply	AC380V 3Phase 50Hz
Package dimensions:	267146216 cm
Machine weight:	1470 kg

Product Information：

1.The machine is specialized design for printing the round or oval bottles, with easy operation and stable.

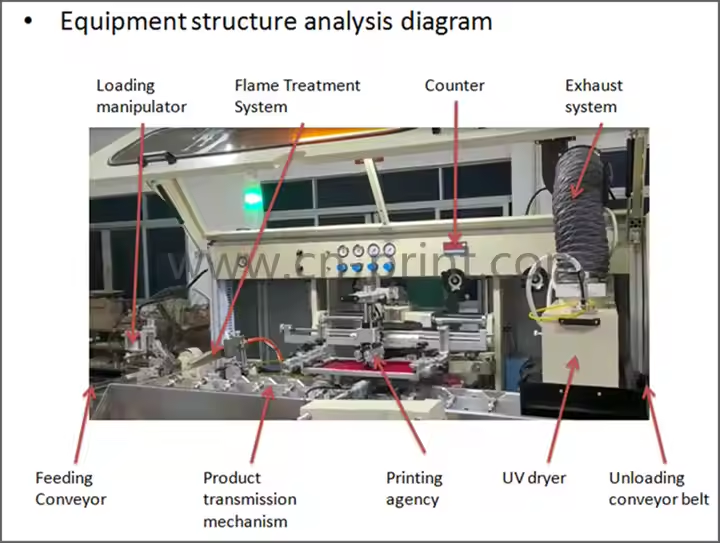

2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:4000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect

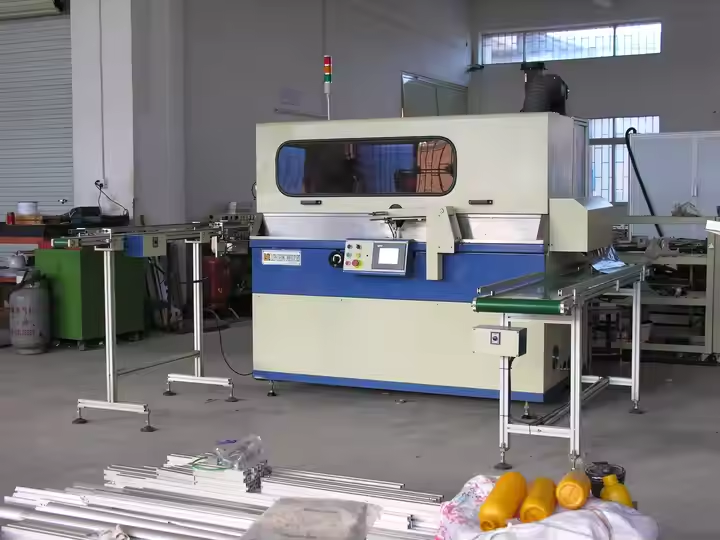

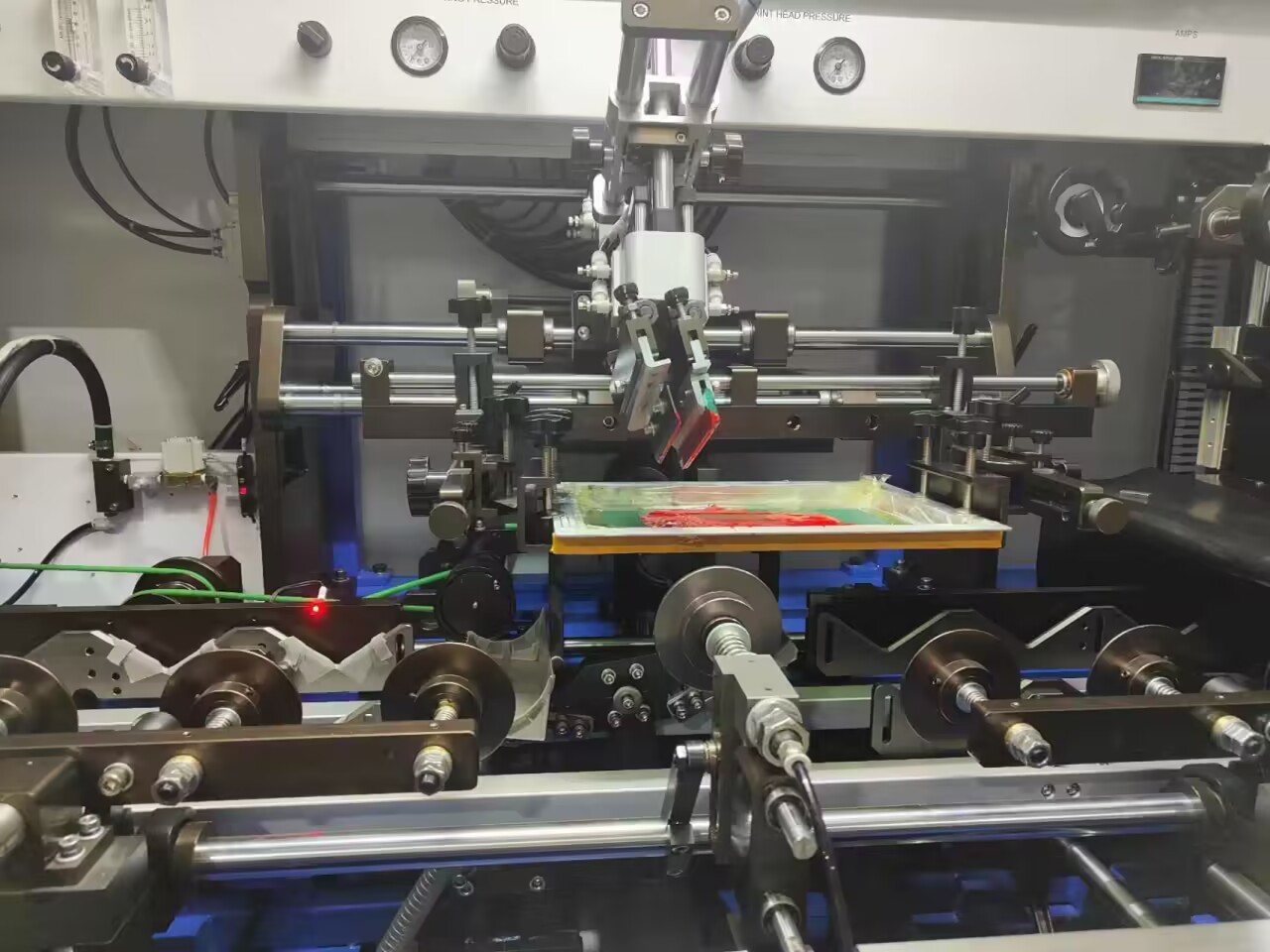

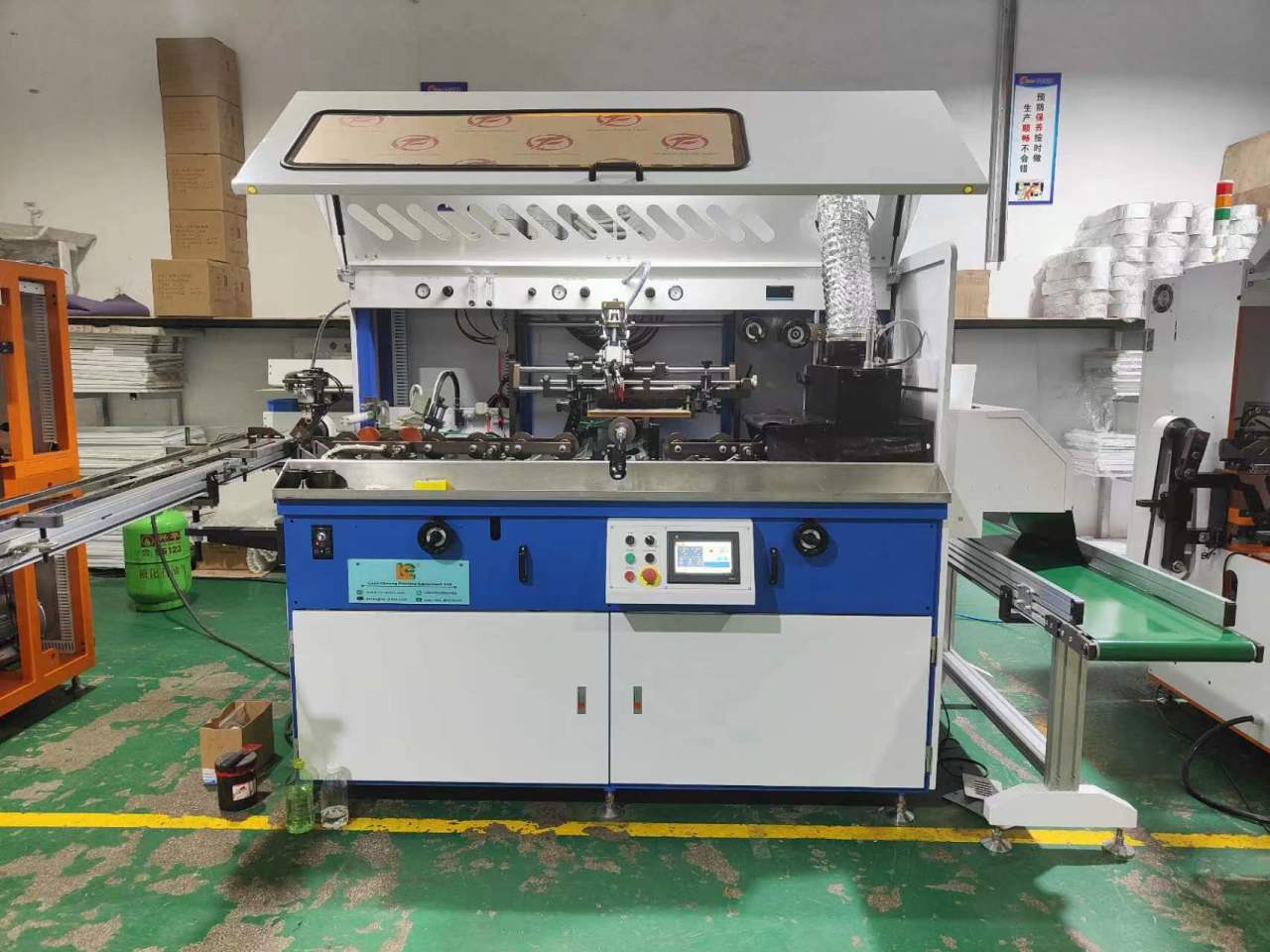

Machine Picture
