SU109UV high speed one color automatic screen printer for test tube
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 unit
high speed one color automatic screen printer for test tube
one color automatic screen printer for 12mm diameter test tube Advantages:
1.Specially design for circular shaped applications such as tubes,caps,and injectionmolds bottles.
2.Servo optical fiber indexing system.It is possible to do multi-colors printing and overpint for some applications
3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on
4. It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 3600pcs/hr.
5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”.
6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality
7. We provide machine design and construction services for special aplication
Specification
| Model No.: | LC-SU109UV |
| Max printing speed： | 3600pcs/h |
| Printing area： | 220*170 mm |
| Height for bottle： | 20 mm < height < 200 mm |
| Diameter for bottle： | 10 mm < diameter < 70 mm |
| UV Lamp Power： | 5 KW |
| Main machine size： | 1950*1800*2200 mm |
| Machine cover area： | 2600*3600*2200 mm |
| Machine weight： | 1000 KG |
| Air supply： | 5-7 Bar |
| Air Consumption： | 400 liter/min |
| Power supply： |
380 V ,3 phase ,50Hz |

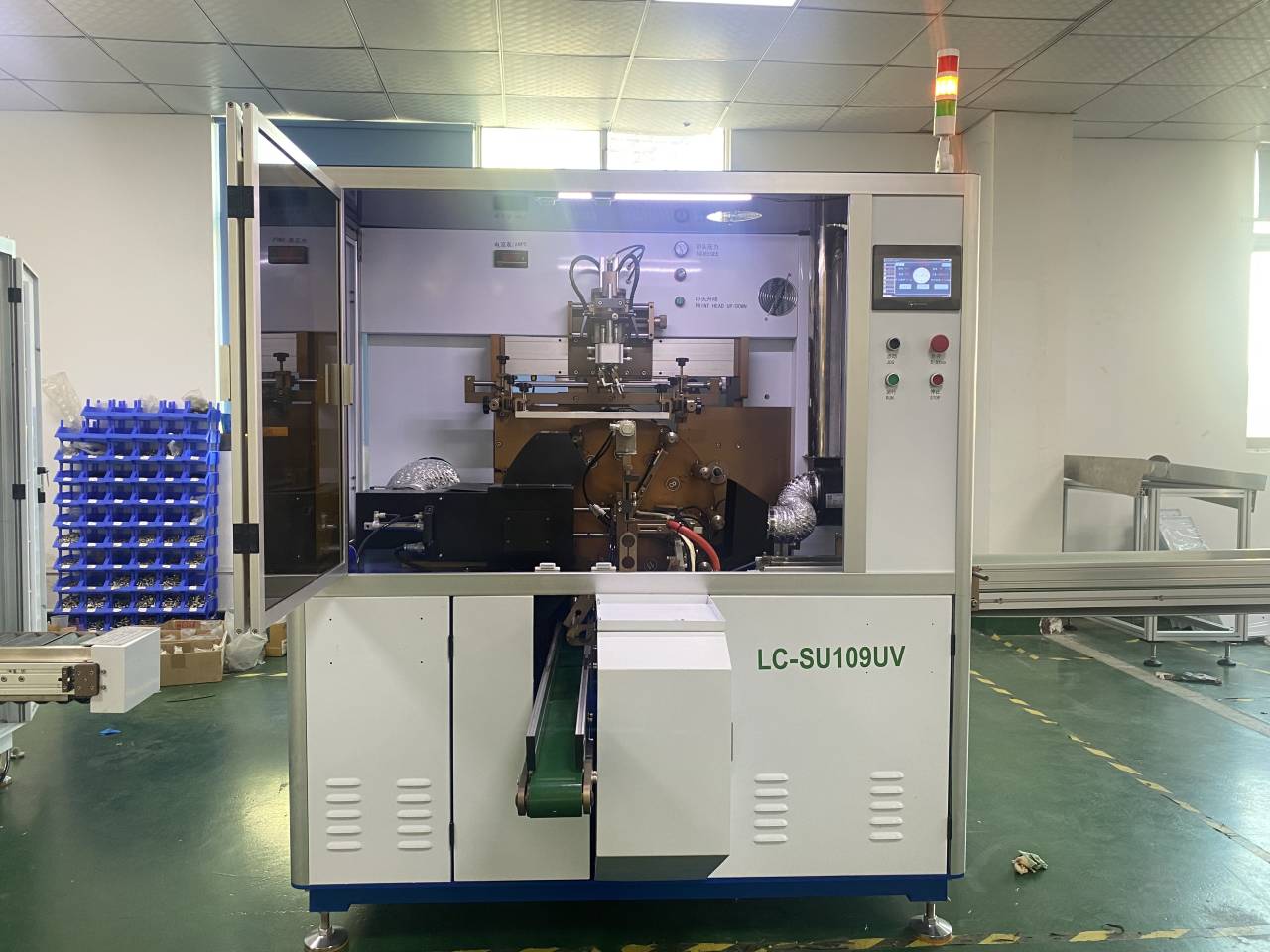

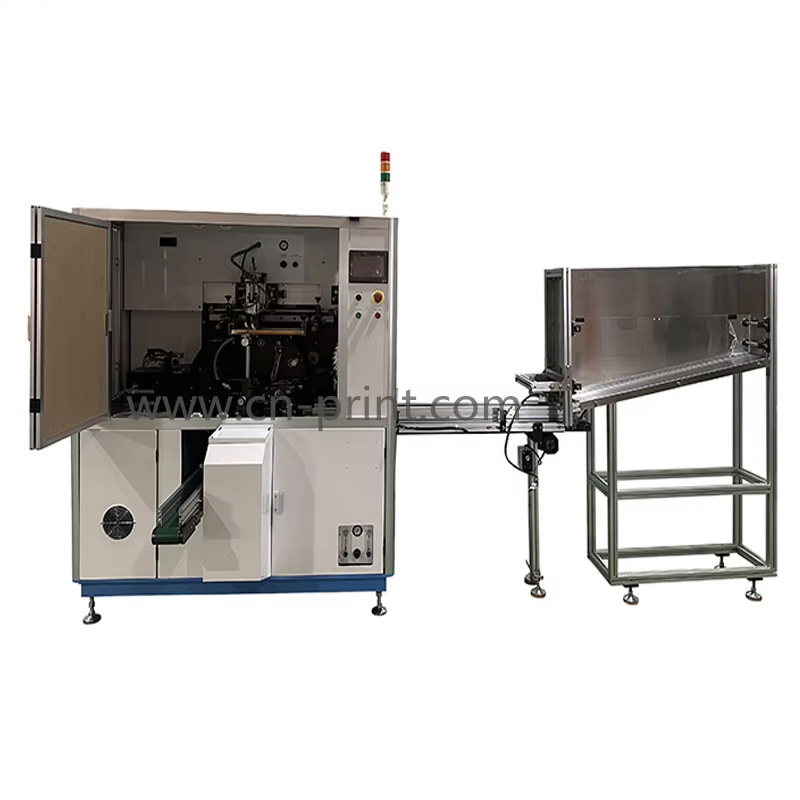

Machine Picture
PLC Touch Control

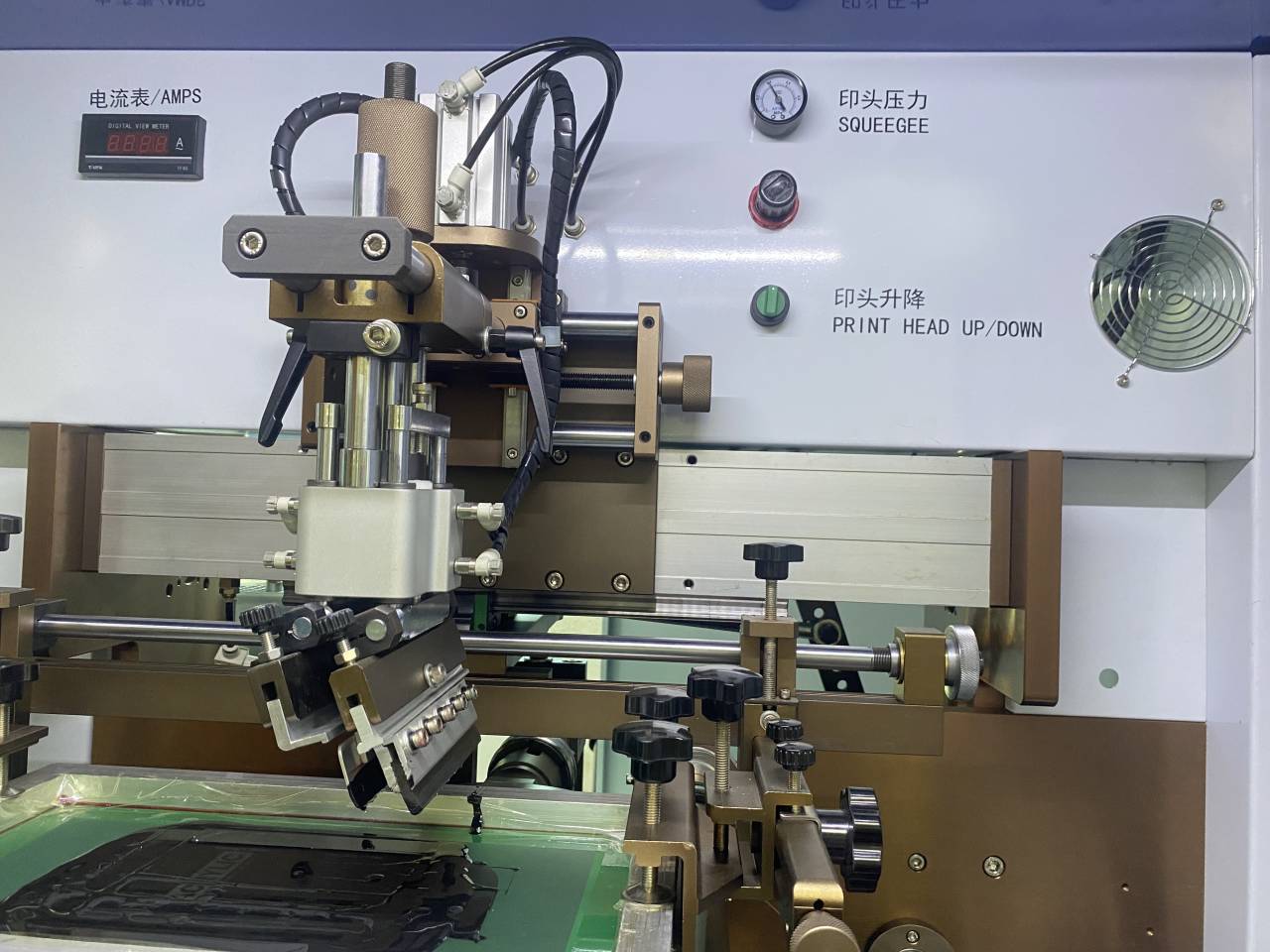

Screen Printing
Printing Sample
Price Terms︰ EXW,DONGGUAN ,CHINA
Packing︰ plywood case
Lead Time︰ 60 days after confirm payment
Standards Certificate︰ CE
Gross Weight︰ 1200KG
Free Fittings ︰ 1. One set fixture for the product 2. One screen frame 3. One operation manual.
