VR108DUV Glass bottle one color automatic UV screen printer
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 UNIT
Glass bottle one color automatic UV screen printer
Features
The biggest feature of this machine is especially for glass bottles, aluminum bottles, stainless
steel bottles without positioning points. The clamp rotates as a whole, and the bottle does not
move. Ensure that the bottle is not thrown out, broken or moved. Can add German sensors,
multicolor overprint. High speed printing, the speed can be at least 50pcs/min.
One color automatic UV screen printer with photoelectronic sensors
Japan Fuji servo and Japan Hitachi PLC system,And the German Leuze color sensor is used to recognized the print position.
Specification
| Model No.: | LC-VR108DUV |
| Max printing speed： | 3200pcs/h |
| Printing area： | 50*150 mm |
| Height for bottle： | 20 mm < height < 150 mm |
| Diameter for bottle： | 10 mm < diameter < 60 mm |
| UV Lamp Power： | 4 KW |
| Main machine size： | 1500*1180*1900 mm |
| Machine cover area： | 2600*3600*2000 mm |
| Machine weight： | 1100 KG |
| Air supply： | 5-7 Bar |
| Air Consumption： | 400 liter/min |
| Power supply： |
380 V ,3 phase ,50Hz |

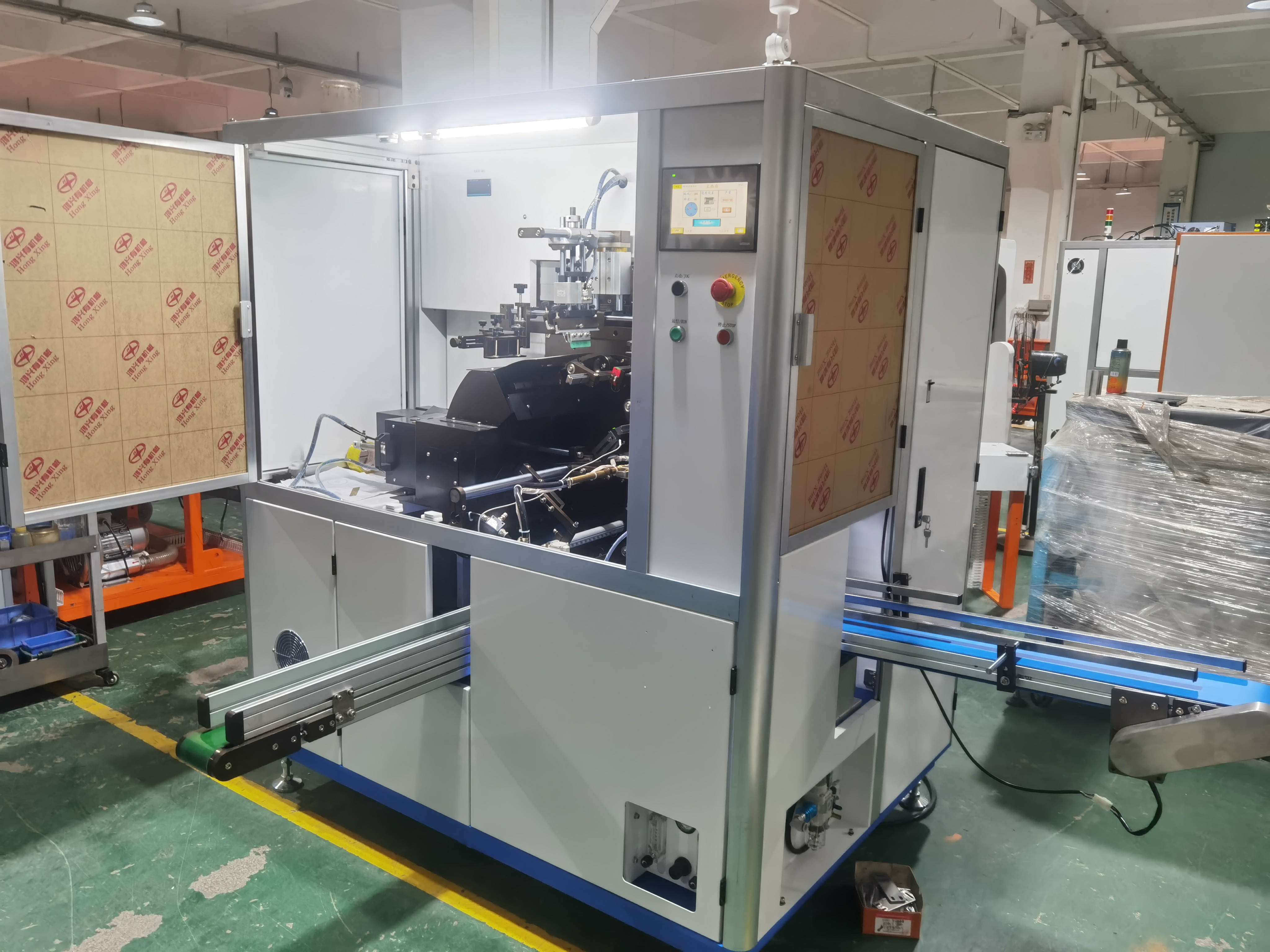

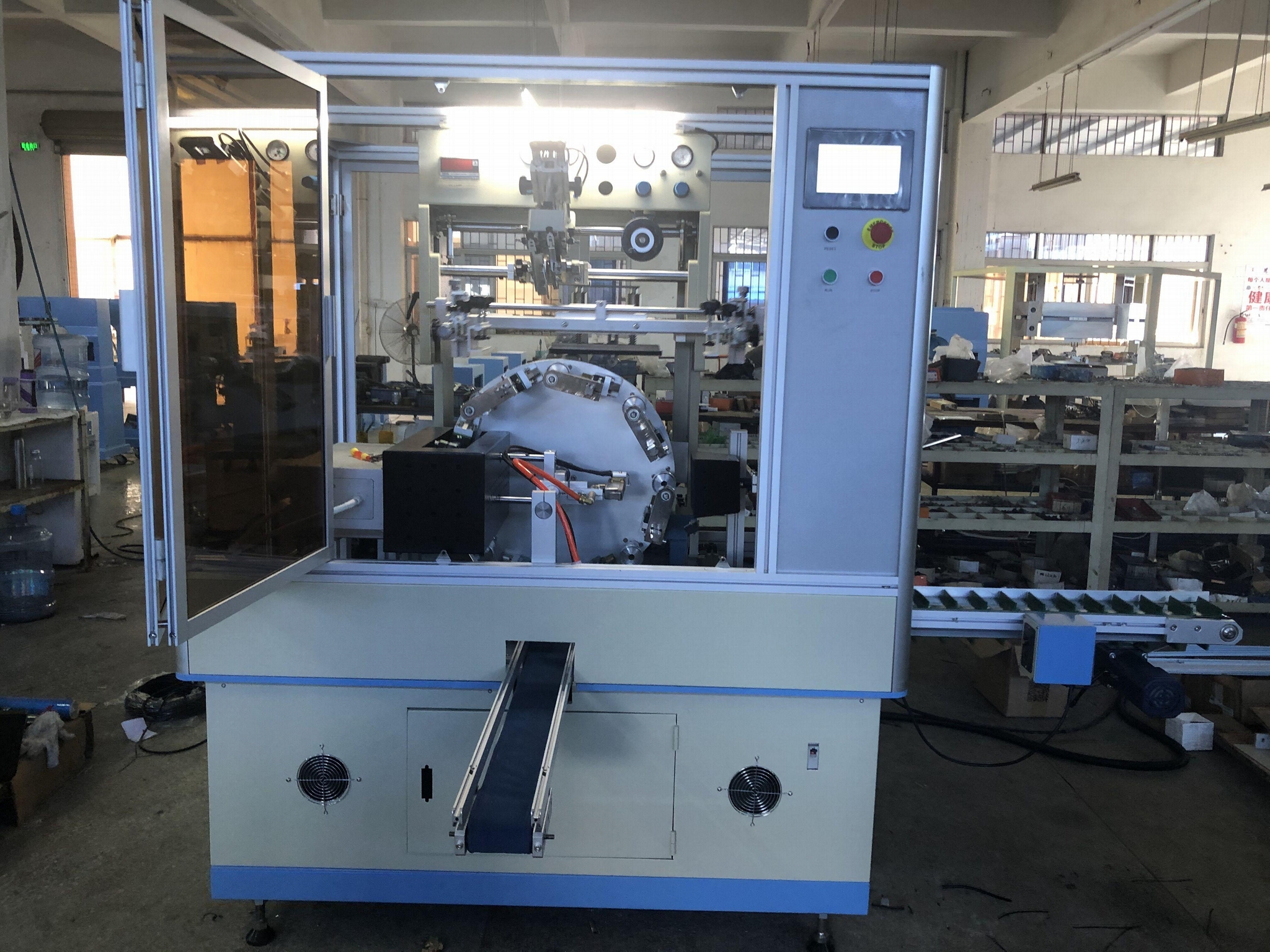

Machine Picture
PLC Touch Control
Screen Printing

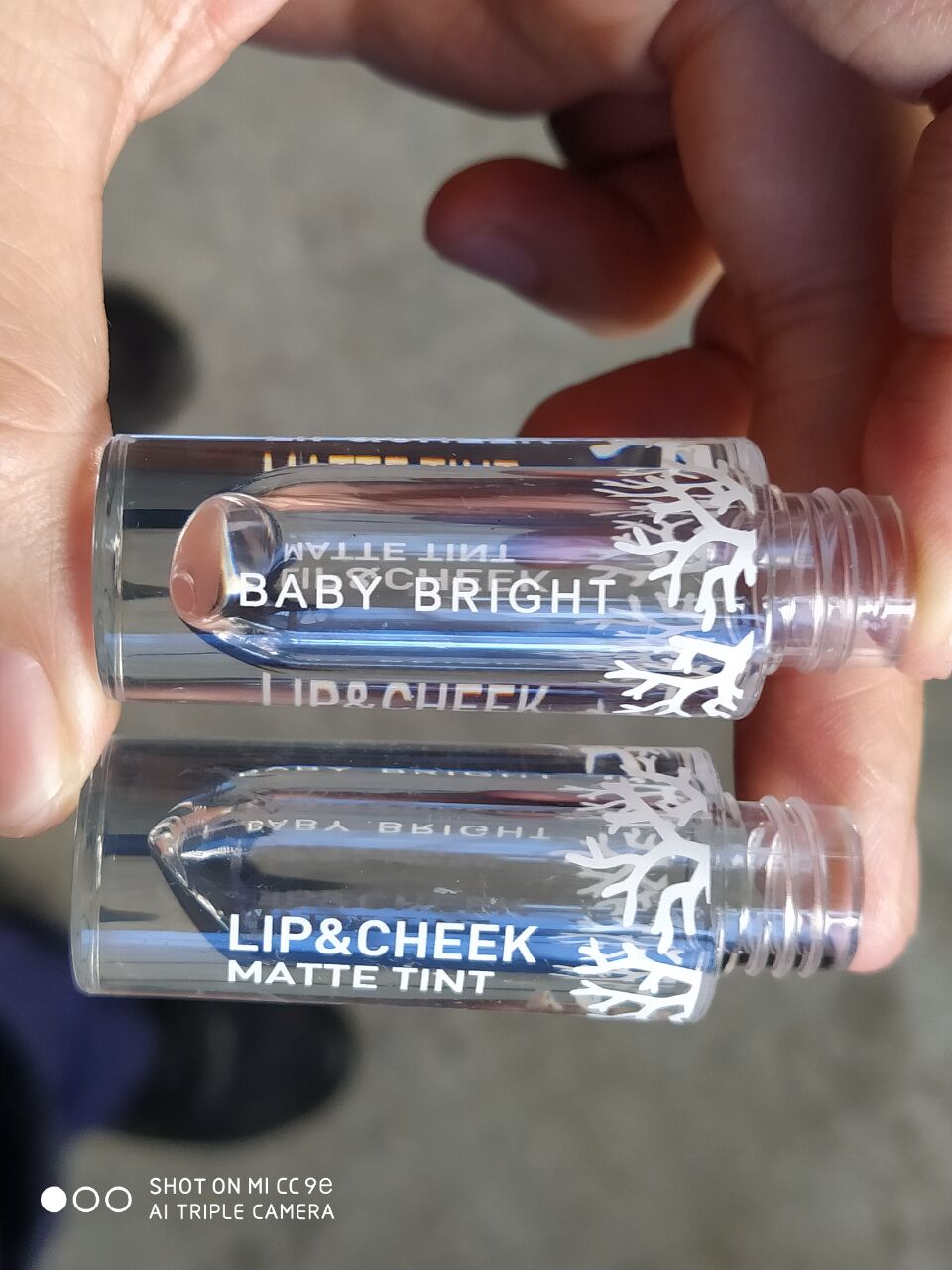

Printing Sample
Price Terms︰ EXW,DONGGUAN ,CHINA
Packing︰ plywood case
Lead Time︰ 60 days after confirm payment
Standards Certificate︰ CE
Gross Weight︰ 1200KG
