LC-ZP-GT Fully automatic Soft Tube heat transfer machine
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 unit
Fully automatic Soft Tube heat transfer machine
Specification
| Max hot stamping diameter： | Ф20-Ф100 MM |
| Max print length： | 200MM |
| Maximum transfer speed: | 30-50 pcs/min |
| Stamping head stroke： | 80MM（adjustable 50MM） |
| Hot stamping temperature： | 0℃～300℃ |
| Maximum workpiece diameter： | 80MM |
| Rated voltage： | 220v60/50HZ |
| Hot stamping pressure range： | 250-350KG |
| Total power： | 4000W |
| Heating power： | 2000W |
| air pressure： | 5-7bar |
| Machine size： | 1800*1400*2100MM |
| machine weight： | 800 KG |
Advantage:
【LC-ZP-GT) Hose heat transfer machine, is fully computer controlled，High precision, easy operation, stable speed, with heating function, automatic feeding, automatic unloading, suitable for thermal transfer printing of aluminum tubes, iron tubes and other metal cylinders, it is an ideal choice for outer packaging printing in the stationery industry.
Product Description:
(1) Computer control, man-machine interface is easy to operate
(2) Hot stamping pressure, temperature and speed can be adjusted
(3) Built-in self-counting, automatic positioning
(4) Automatic foil feeding, foil retracting and adjustable, no foil every time the machine stops
(5) The height of the hot stamping head is adjustable and the range is large
(6) The conveyor belt is used for feeding, and the product is automatically output.

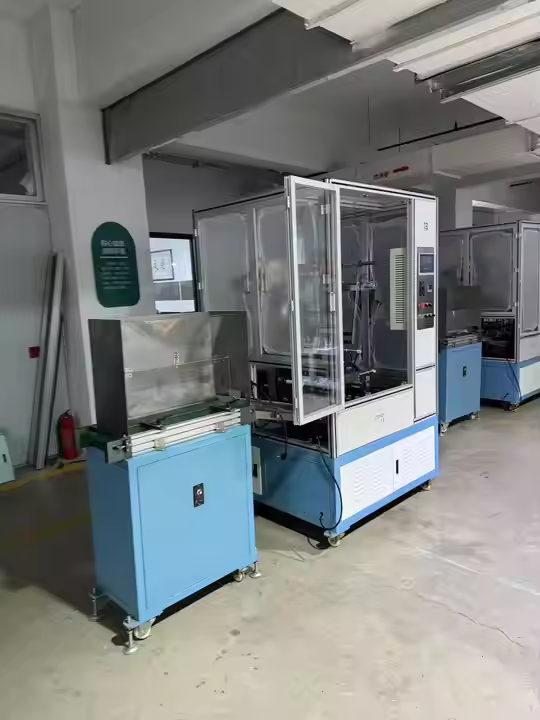

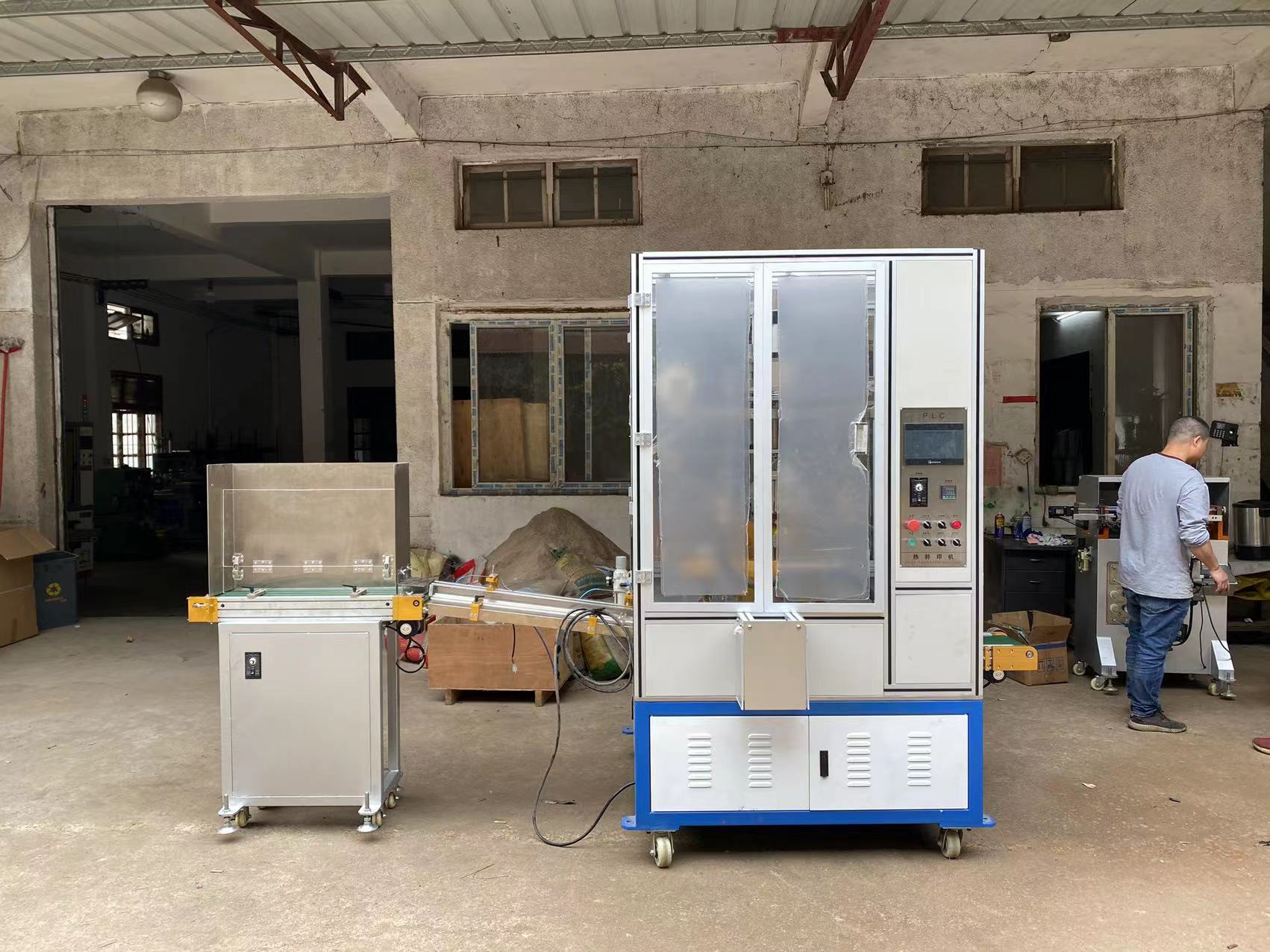

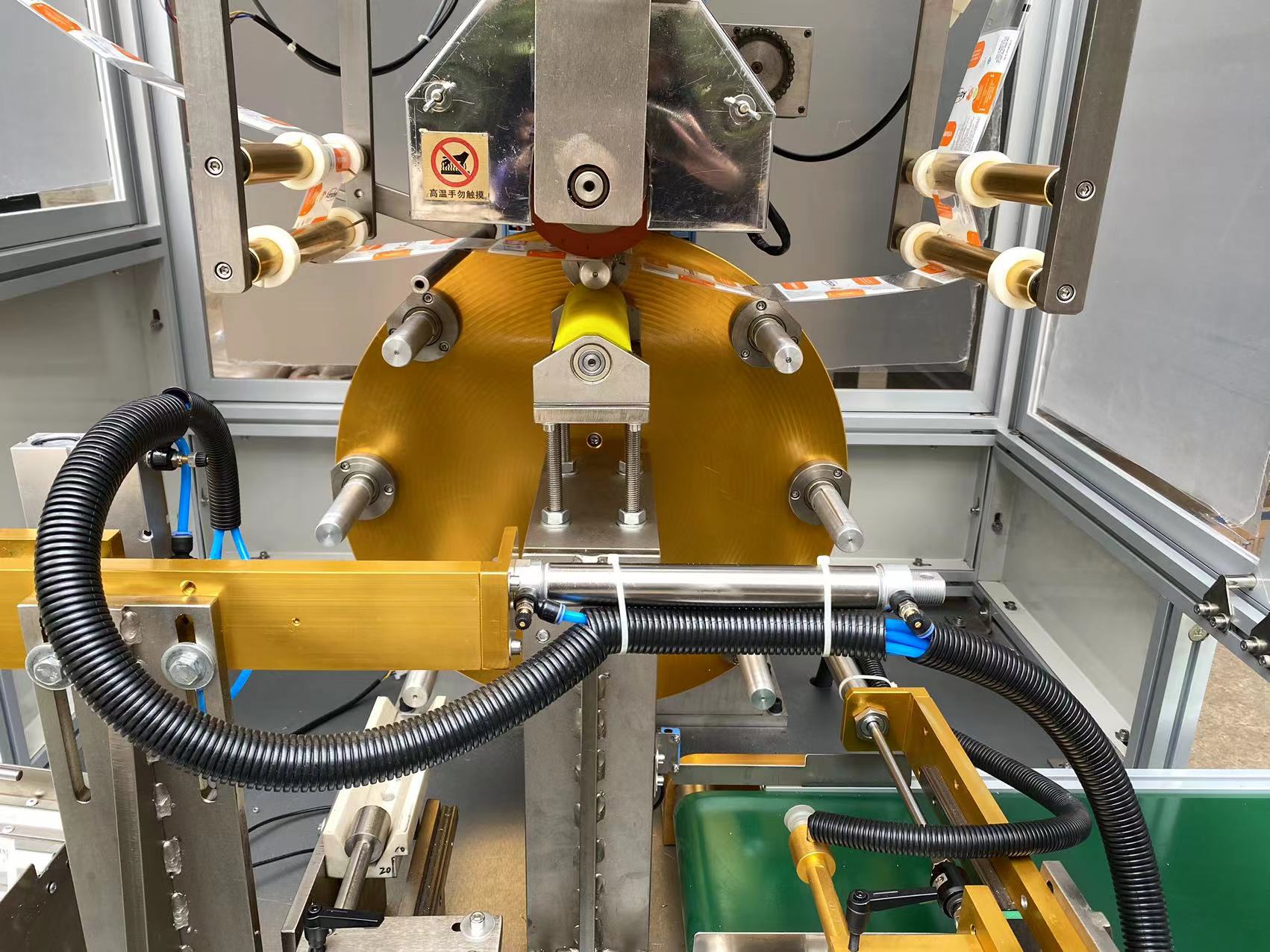

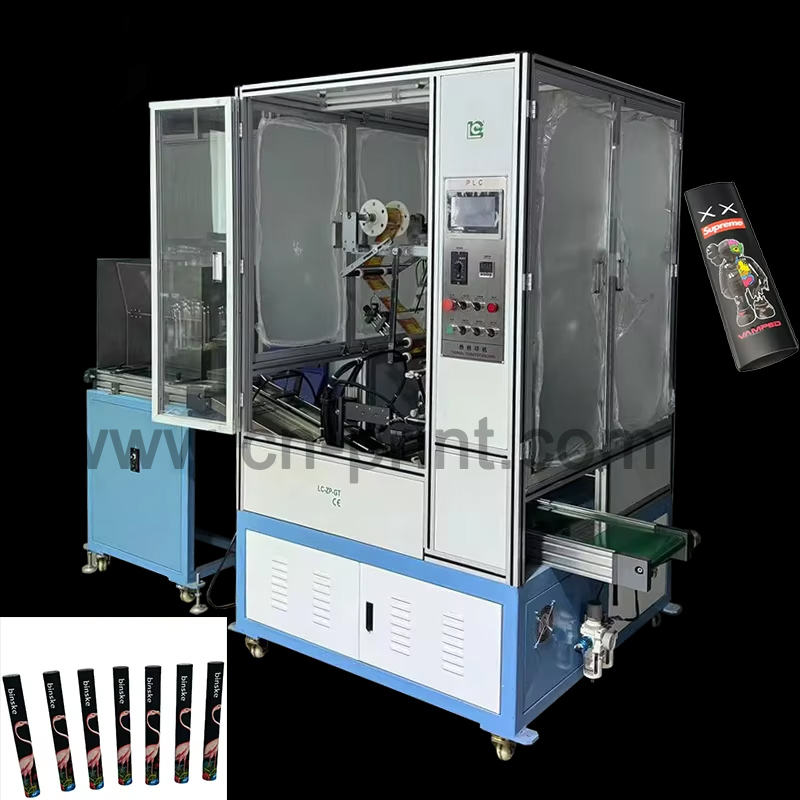

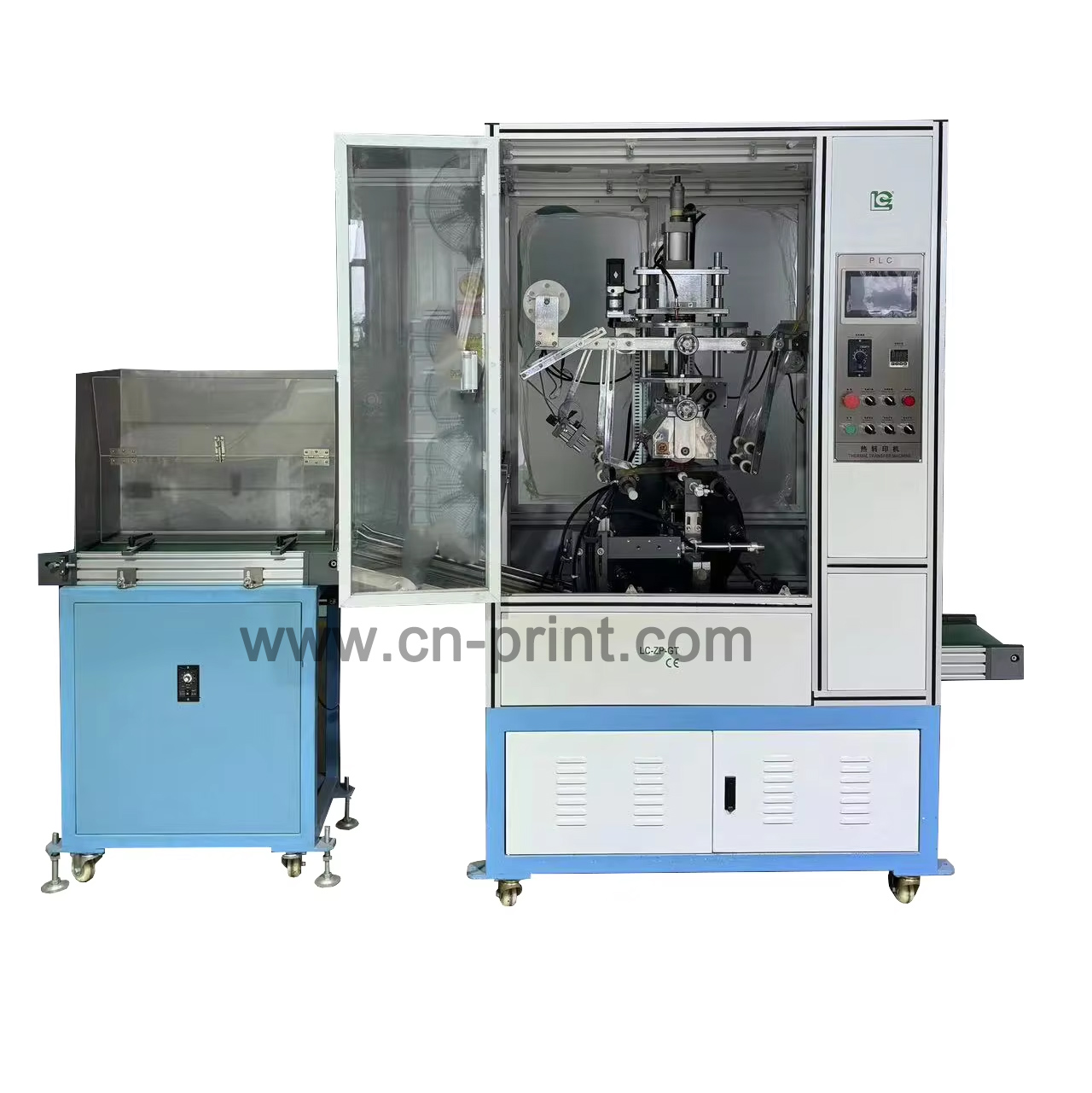

Machine Picture

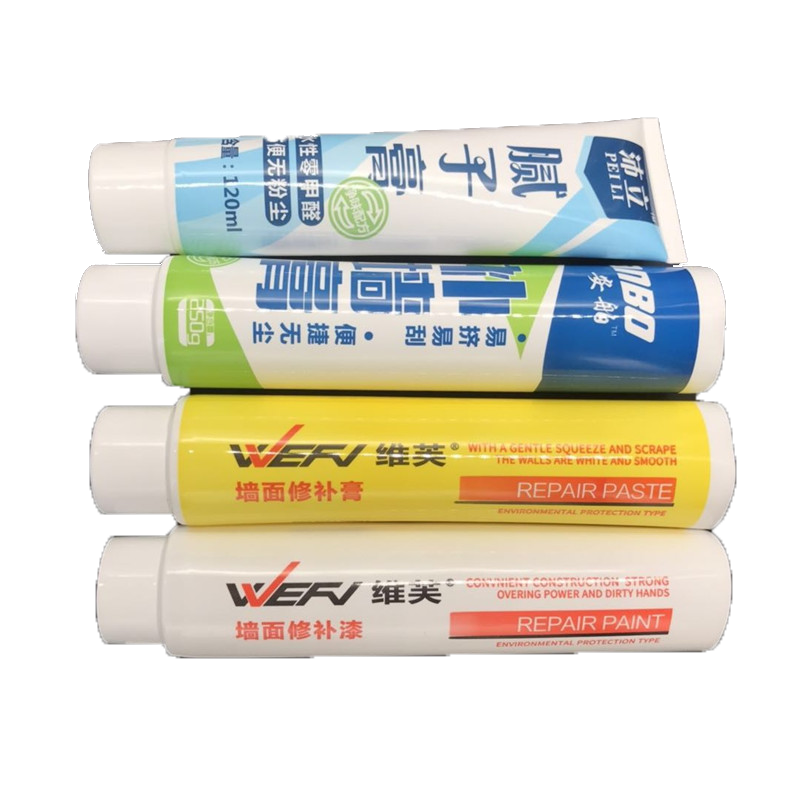

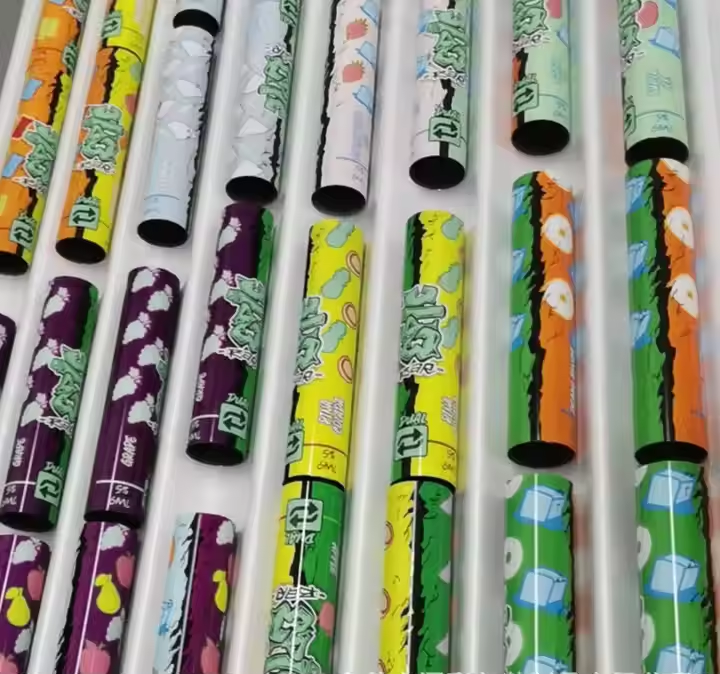

Printing Sample
