400ES Screen Printer With Color Sensor Screen Printing Machine For Burgundy Bottle
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 unit
Servo Motor Screen Printing Machine for Glass Bottle Plastic Cup
LC-PA-400ES screen printer add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor too.

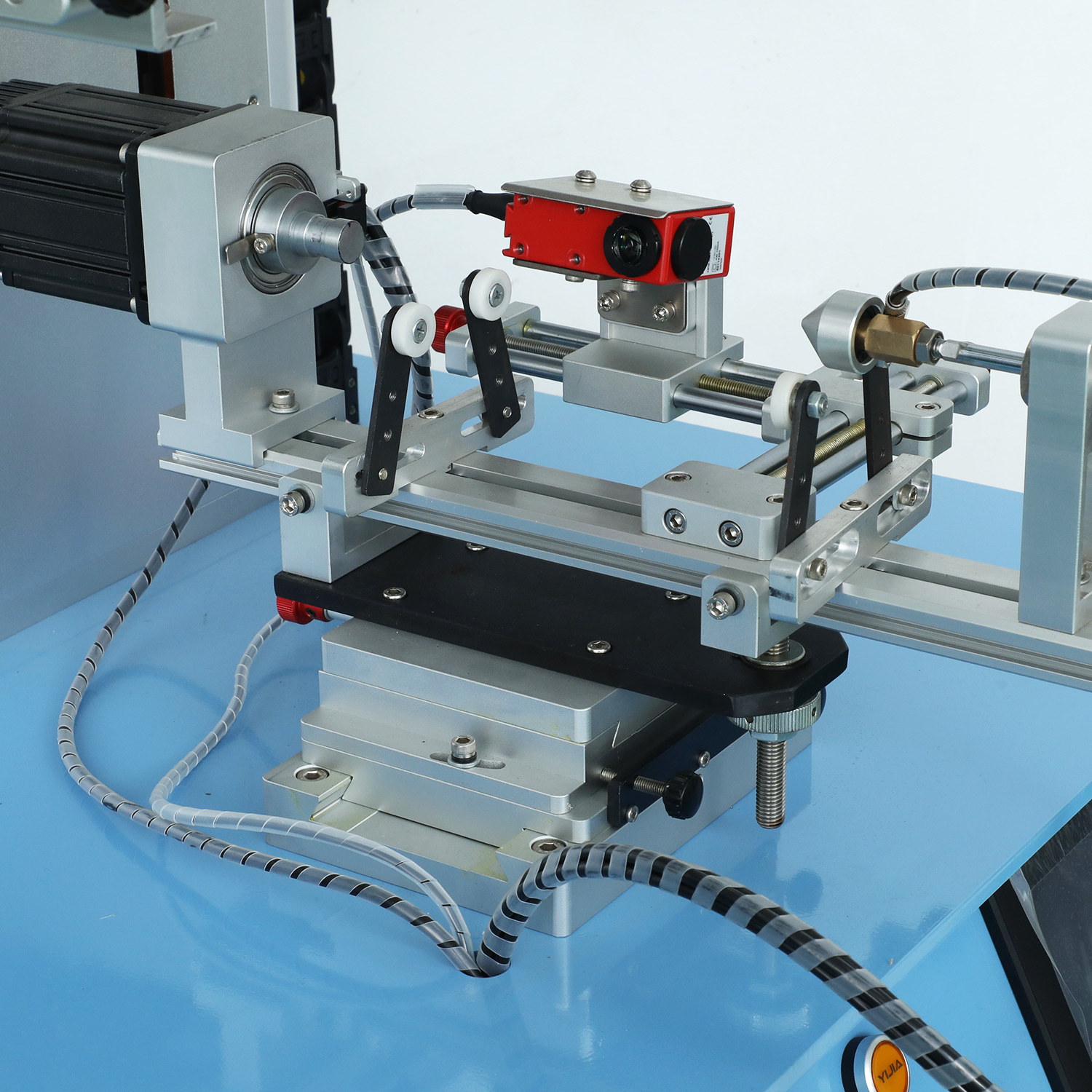

LC-PA-400ES adopted 2sets ABB Swiss Servo Motor, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position. It make sure to accurate position of products and no need to adjustment . It's suitable for bottles, cups, tubes and etc.
Specification
| Model number: | LC-PA-400ES |
| Product appearance: | Round |
| (Round)Max. Printing diameter: | Φ120mm |
| (Round)Max printing arc length: L: | 370mm |
| Printing Speed: |
1500 PC/H |
| Machine size： | 98*88*139cm |
| Package dimensions： | 103*100*148cm |
| Machine/ Weight: | 270KG |
| Package weight： | 300KG |
| Air pressure: | 0.5Mpa |
| Voltage power: | 220V/ 50HZ |
Advantages:
1. Round printing function (taper section)
2. Automaticoil scrabbing, oil return and lifting table
3. Adujustability of routs and speeds
4. Self-poise scraper to balance printing pressure
5. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
6. High precision and easy & quick adjustability

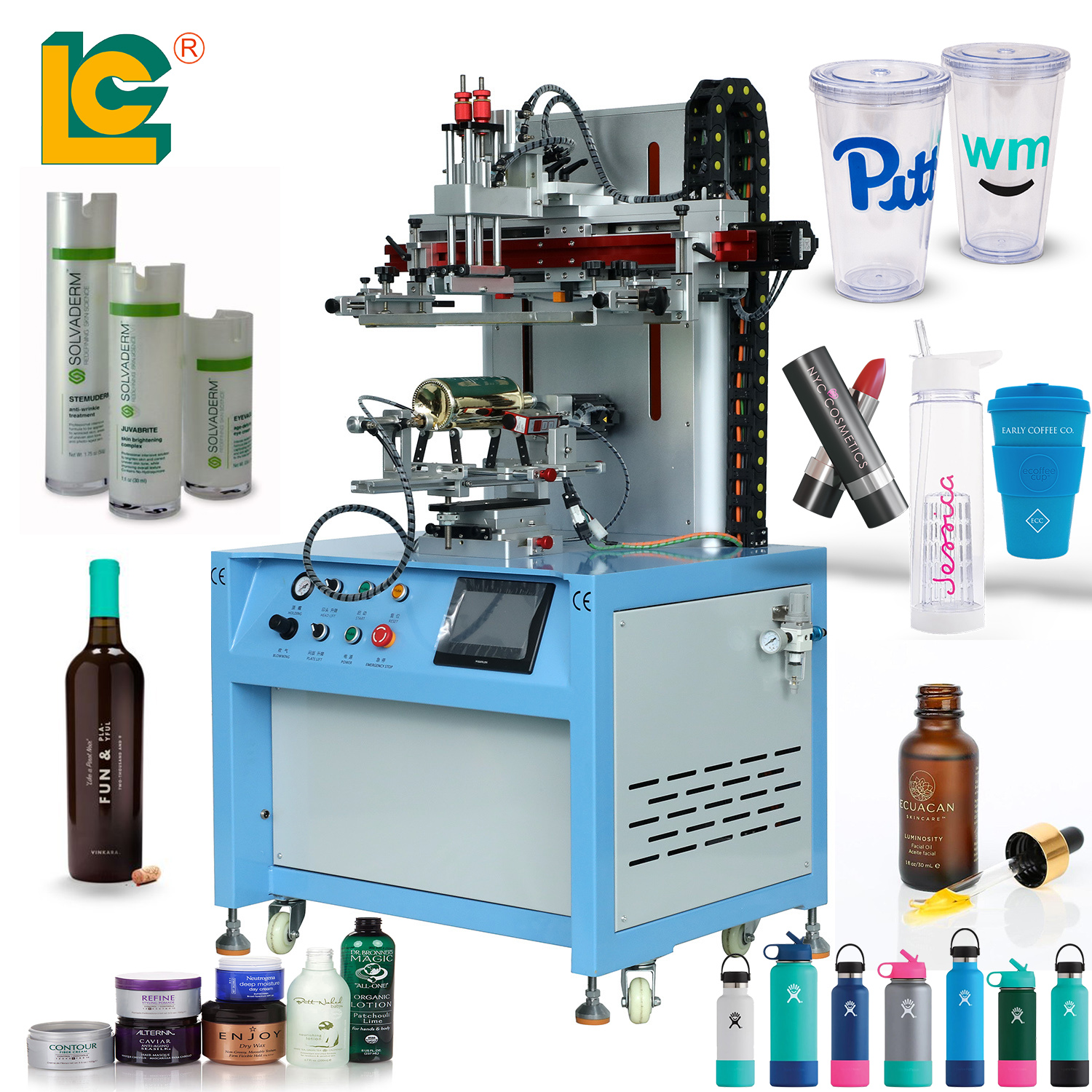

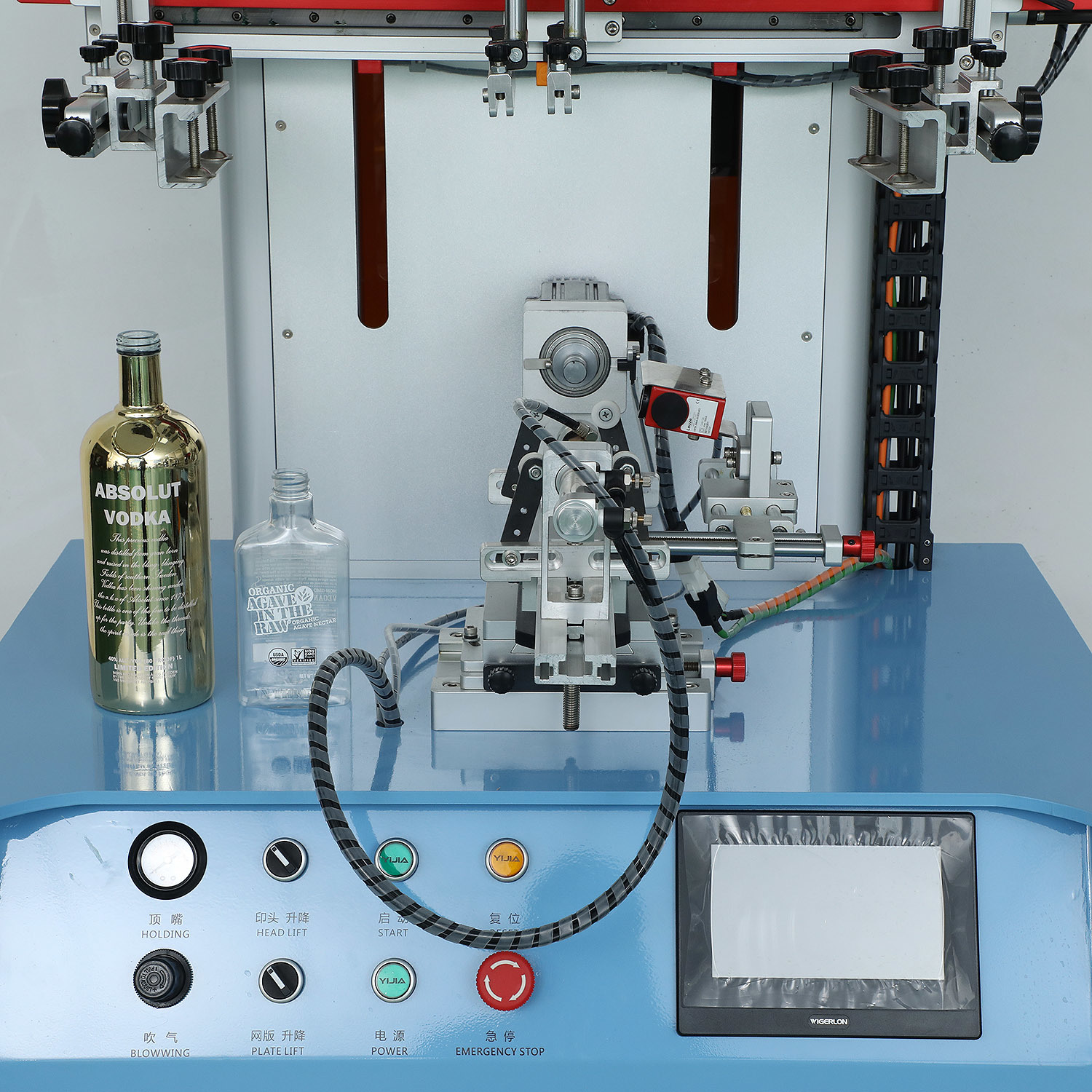

Machine Picture
Printing Sample
Price Terms︰ EXW DONGGUAN CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 15 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ detergent bottles, Pens, beverage bottles, cups, cans, cosmetics package box, lipstick tube
Gross Weight︰ 300kg
H.S.code︰︰ 8443192190
