LC-THA100/8 Automatic rotary lipstick tube heat transfer machine with flame processing
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 unit
Automatic rotary lipstick tube heat transfer machine with flame processing
Advantages:
【LC-THA100/8) Lipstick Tube heat transfer machine, This is 8 station automatic lipstick tube transfer machine, automatic loading, automatic transfer, 8 lipstick tubes at a time. Maximum diameter 100mm.High precision, easy operation, stable speed, with heating function, automatic feeding, automatic unloading, suitable for thermal transfer printing of aluminum tubes, iron tubes and other metal cylinders, it is an ideal choice for outer packaging printing in the stationery industry.
Specification
| 1. Maximum hot printing diameter: | 20 MM-100 MM |
| 2. Maximum printing length: | 250 MM |
| 3. Stamping head stroke: | 80MM (adjustable 50MM) |
| 4. Stamping temperature: | room temperature 0℃ ~ 300℃ |
| 5. Maximum workpiece diameter: | 80MM |
| 6. Maximum hot stamping speed: | 20 PCS/min |
| 7. Rated voltage: | 220V 60/50HZ |
| 8. Stamping pressure range: | 250-350KG |
| 9. Machine power: | 4000W |
| 10. Heating power: | 2000W |
| 11. Gas pressure: | 5-7bar |
| 12. Machine size: | 1600*1400*2000MM(excluding conveyor belt) |
| 13. Machine weight: | 800KG |

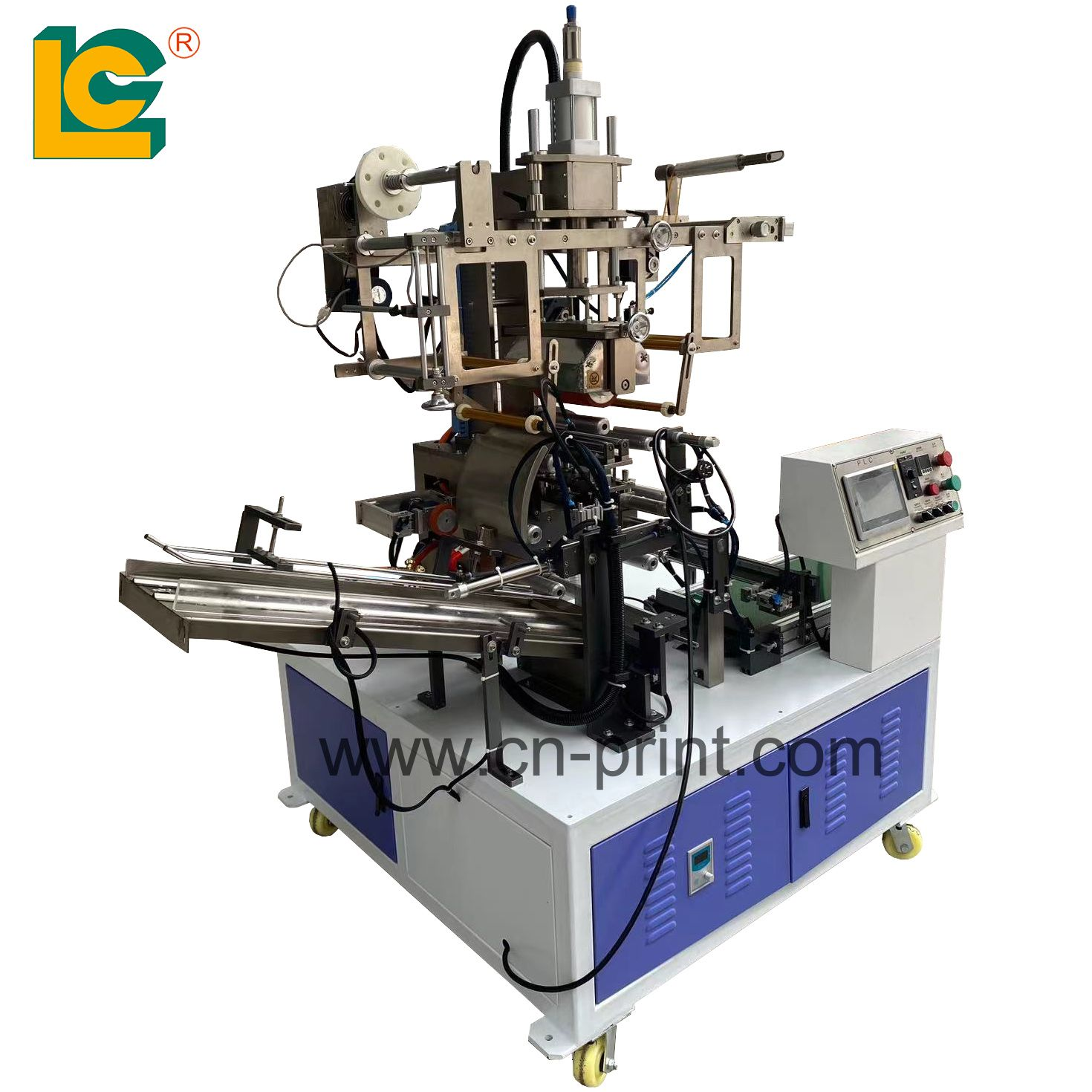

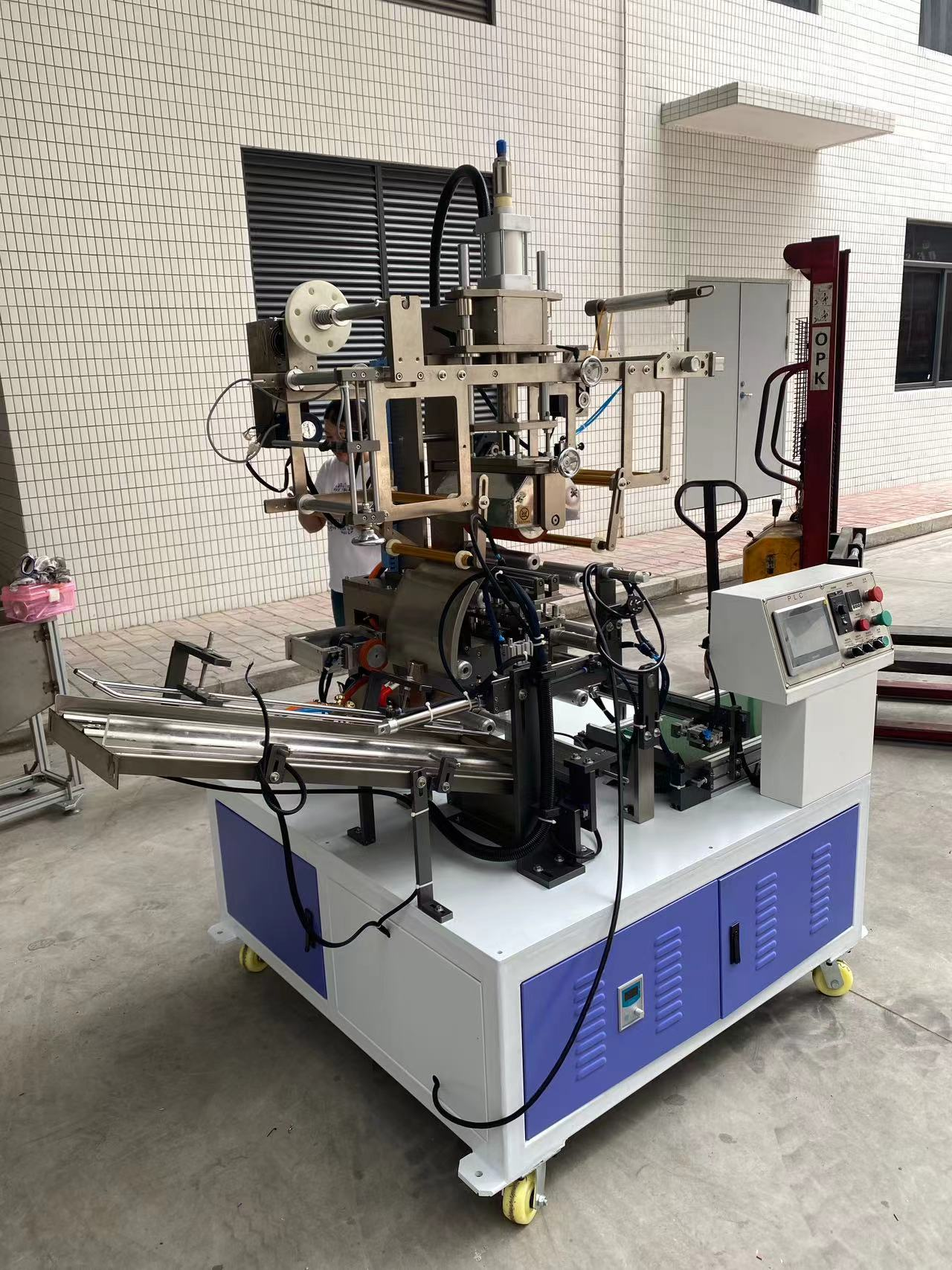

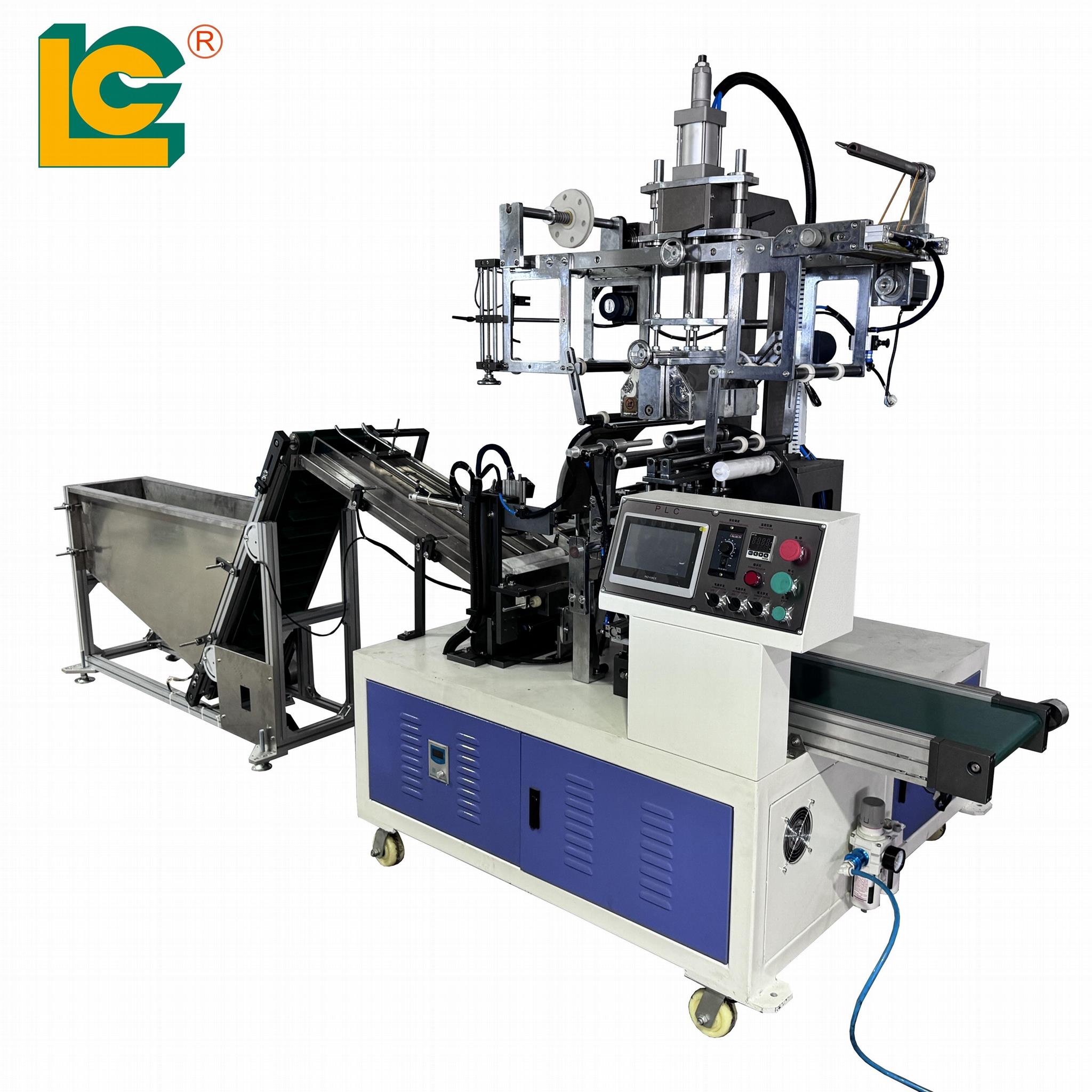

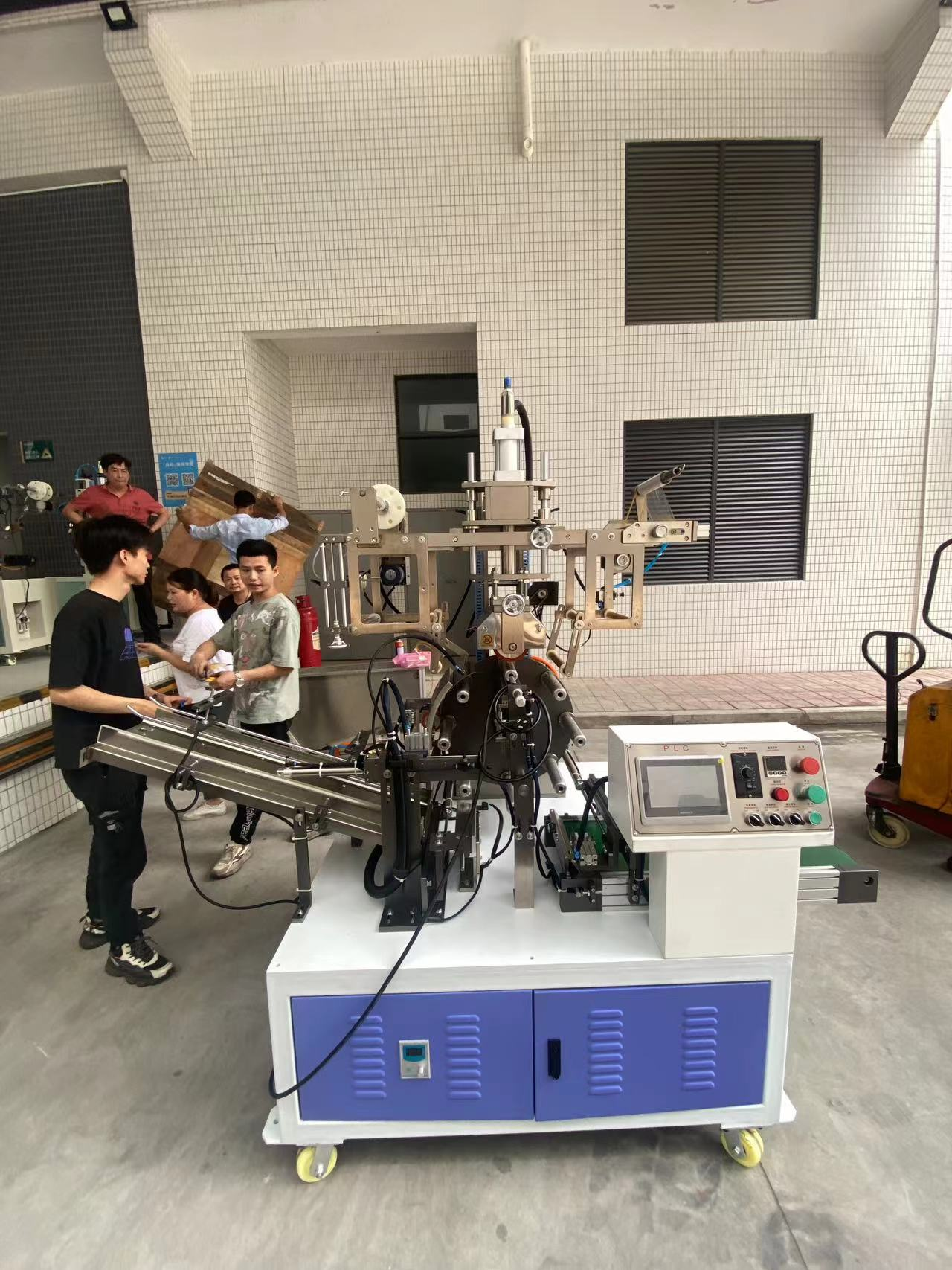

Machine Picture
Product Description:
(1) Computer control, man-machine interface is easy to operate
(2) Hot stamping pressure, temperature, speed can be adjusted
(3) Built-in self-counting, automatic positioning
(4) Automatic foil feeding, foil collection and adjustable, no foil shutdown
(5) The height of the stamping head can be adjusted, and the range is large
(6) Using lifting conveyor belt feeding, automatic product
(7) The front and rear conveyor belts are 1 meter each
(8) The machine contains flame processing
Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 35 Days
Standards Certificate︰ CE
Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops
Gross Weight︰ 820kg
Main Parts︰ Bearing, Motor, PLC
