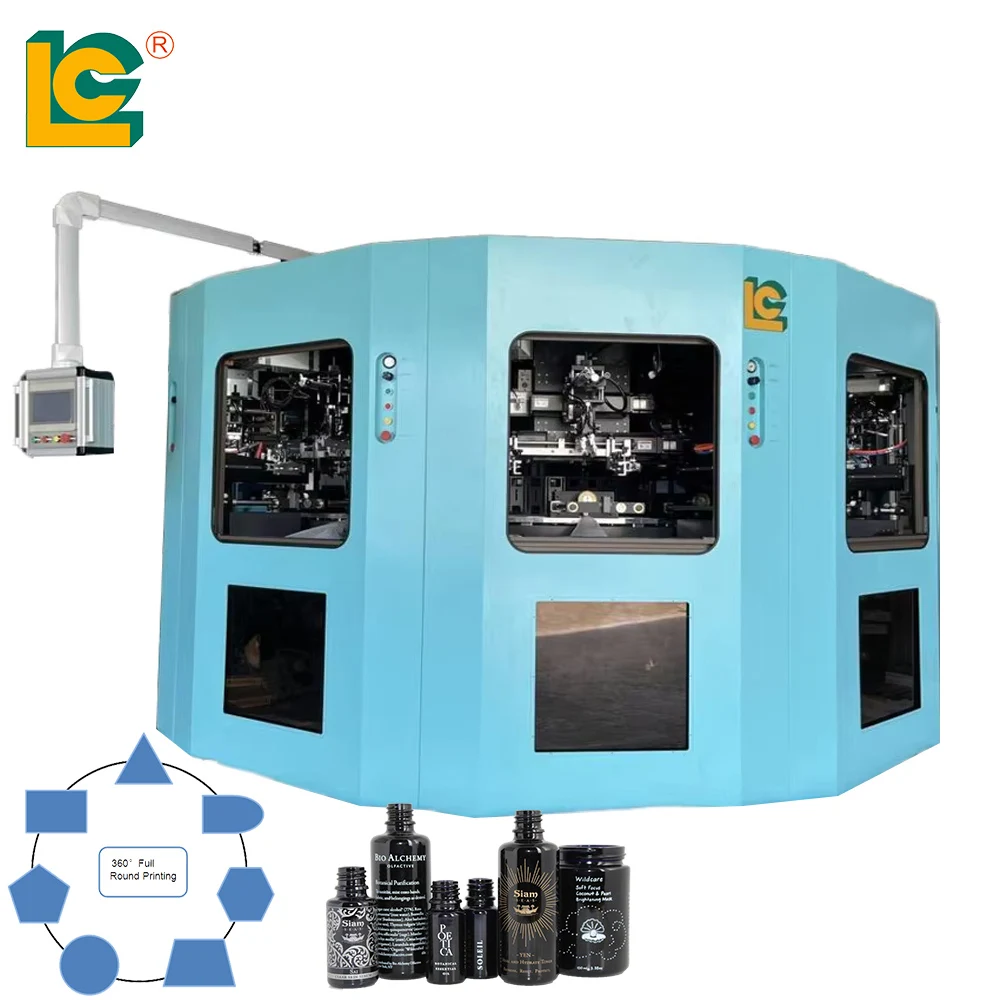

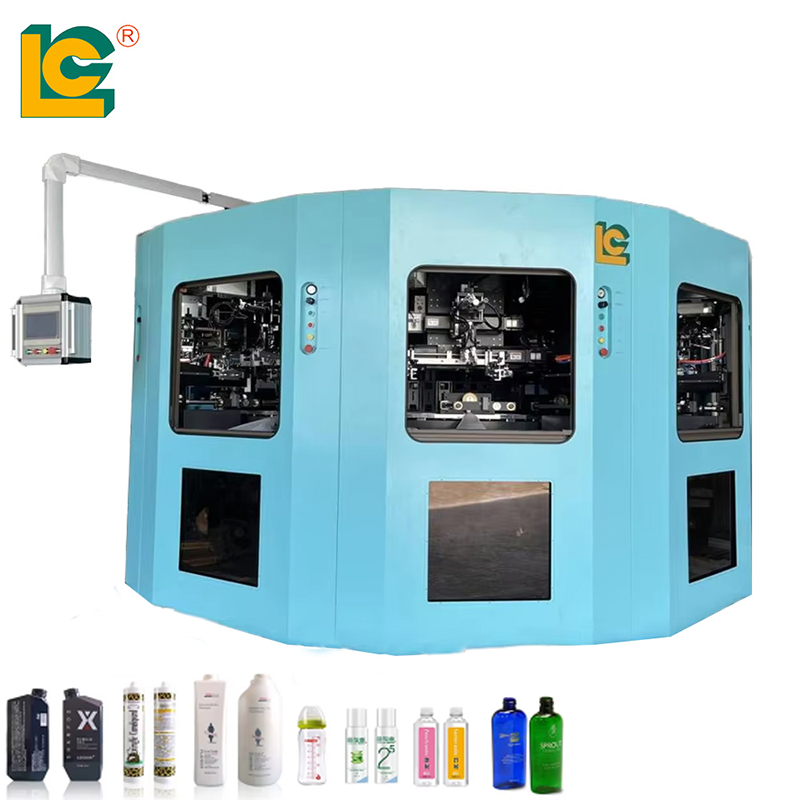

Automatic CNC Special Shaped Bottle Screen Printing Machine for Glass and Plastic Bottle Printing Applications

Model No.︰LC-CNC820
Brand Name︰LC
Country of Origin︰China
Order︰1 unit

Product

Contect Us

Product Details

Product Description

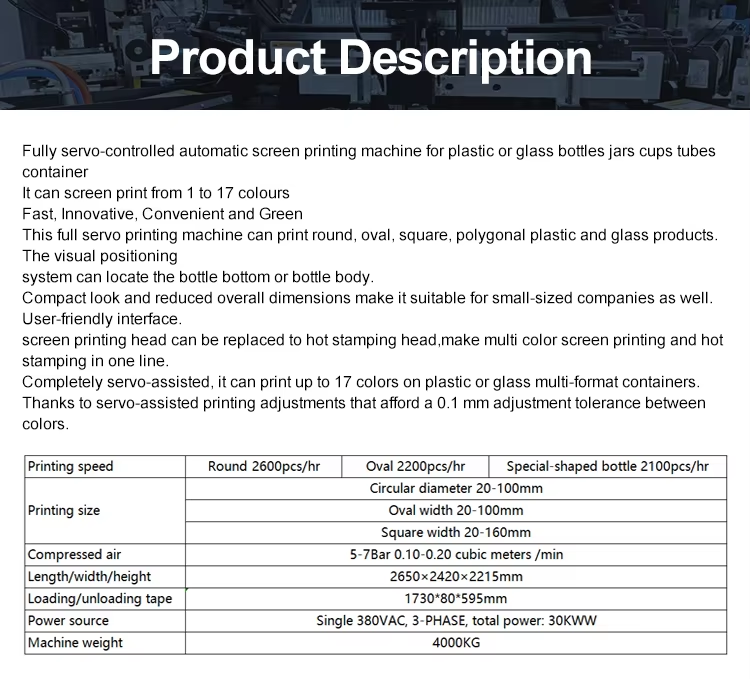

Fully CNC servo-controlled automatic screen printing machine with CCD for plastic or glass bottles jars cups tubes container

It can screen print from 1 to 17 colours.High printing precision could reach to 0.1mm

* Specially designed for the circular-shaped applications such as soft tubes, bottle caps and cream bottles.
* It also supports the operation of polychrome printing and accurate color register.
* The main transfer system adopts famous Occident transmission equipment. With the help of accurate interval slicer in high speed, the system is able to realize the accurate transmission of division, which makes this machine perform stably at a printing speed of 3600 times/hour;
* The PLC control System enjoys a high reputation. Equipped with simple, convenient and fast touch screen system, man-machine conversation is possible, which makes the operation more handy.

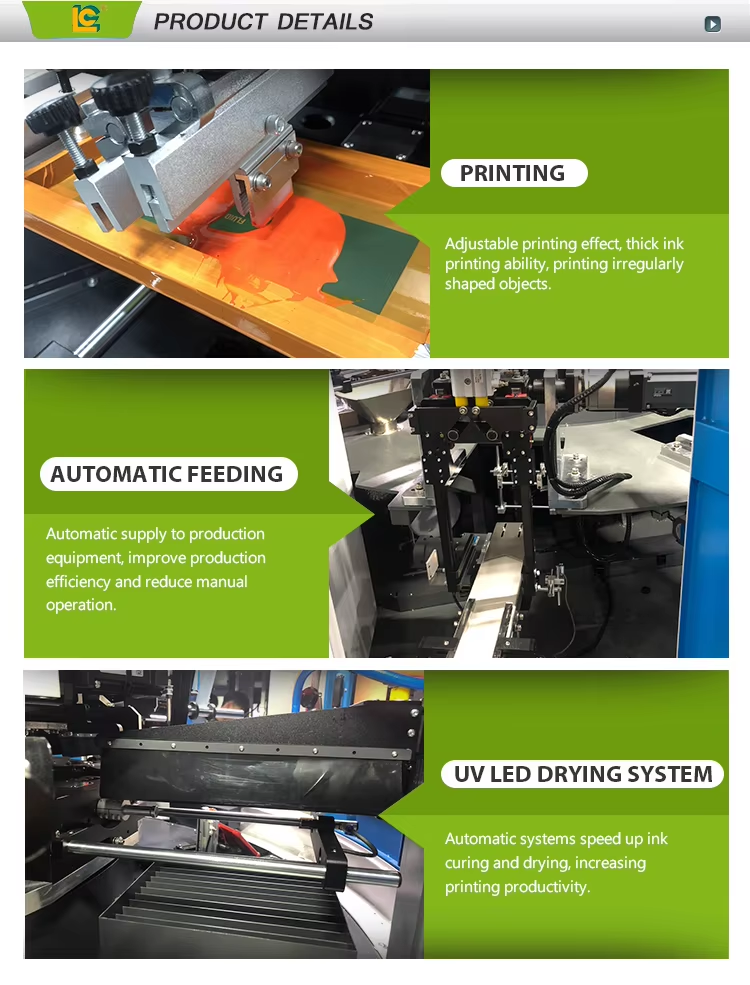

* As for the solidification of the printing ink, we use the ultraviolet for realization. The ultraviolet will facilitate the
printing effects when the stable performance and electricity-efficiency are guaranteed.
* The full-auto loading and unloading manipulator device system promises continual and stable printing work as well as the safety of operating personnel.

Description：

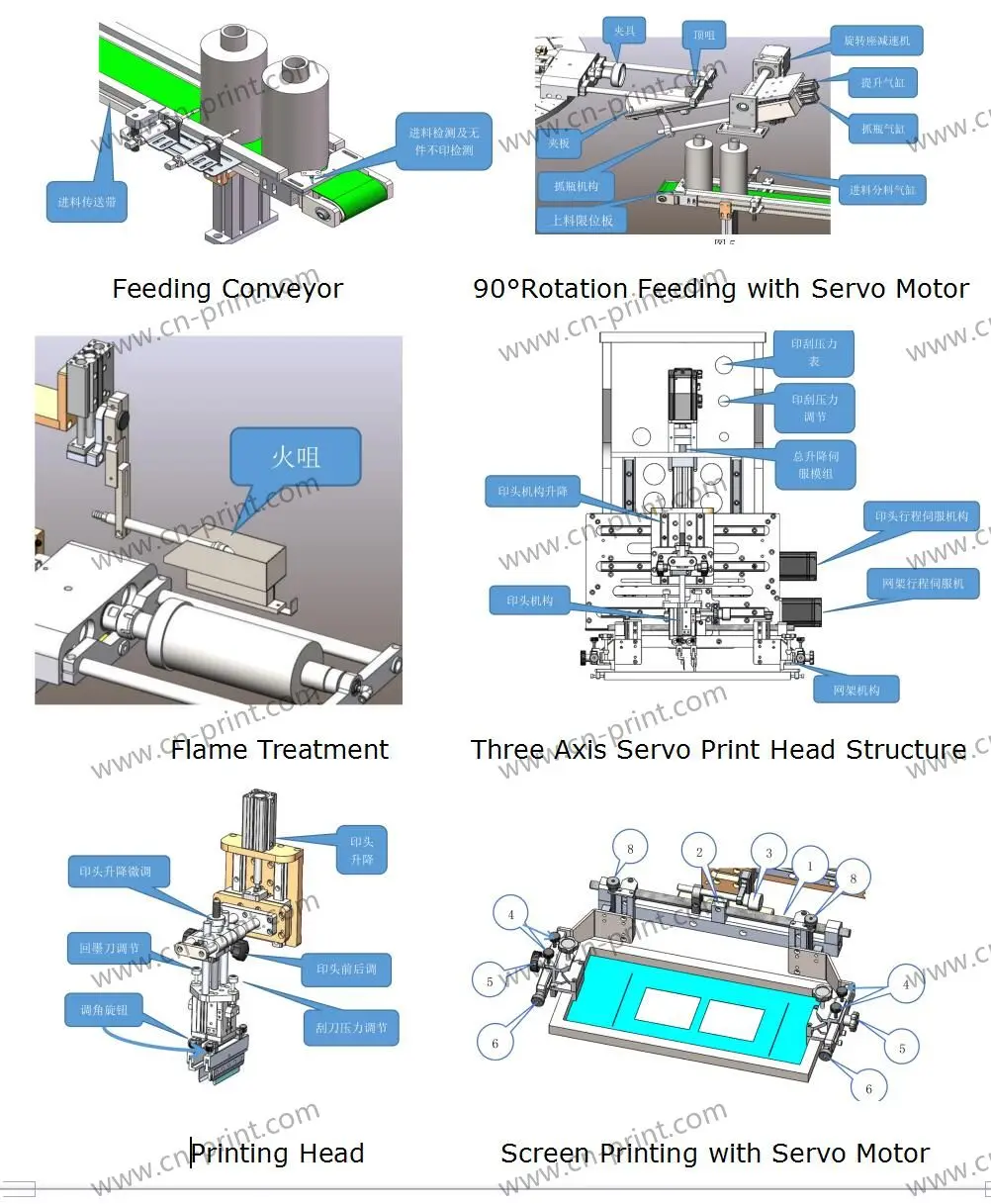

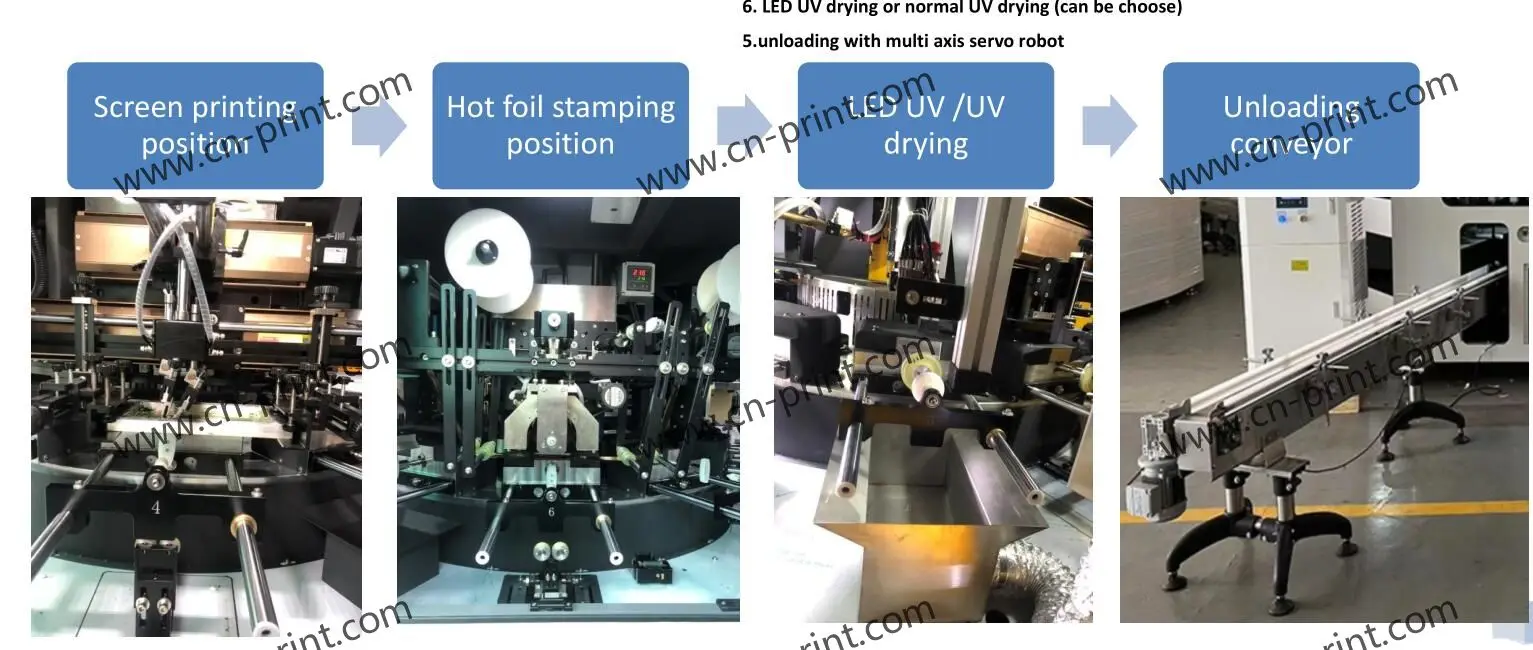

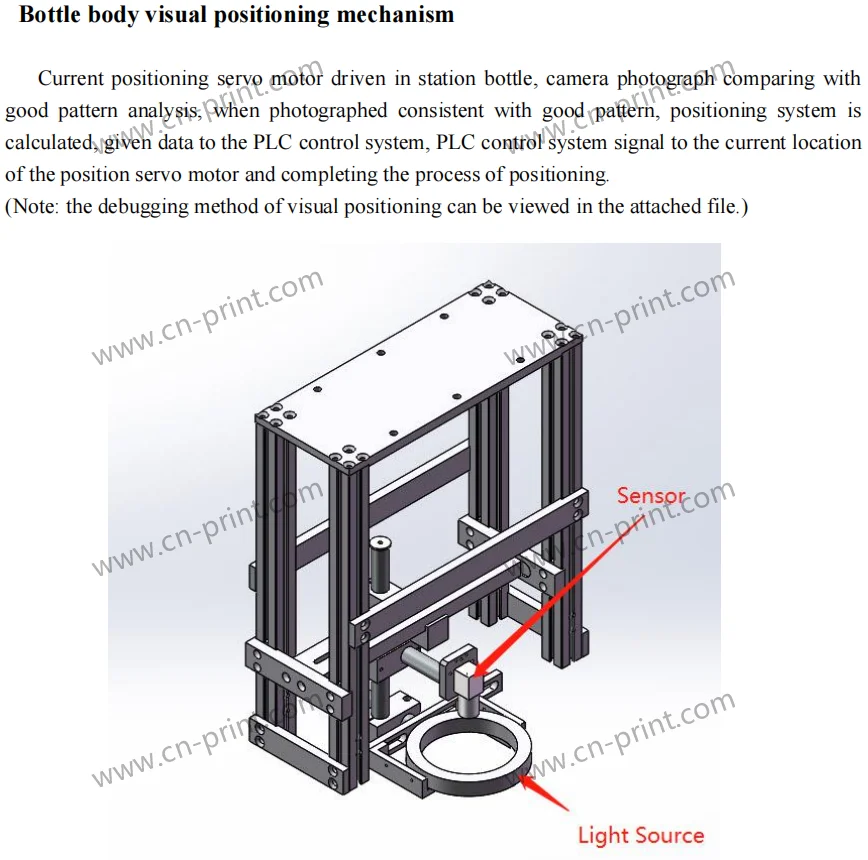

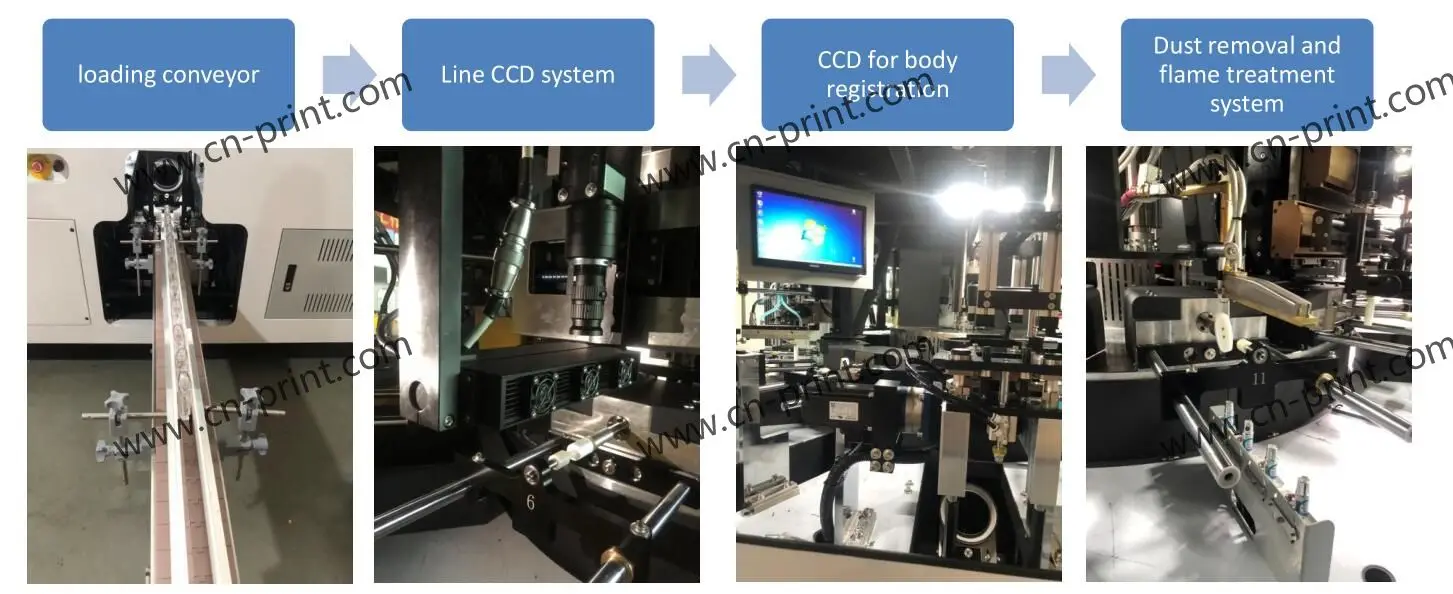

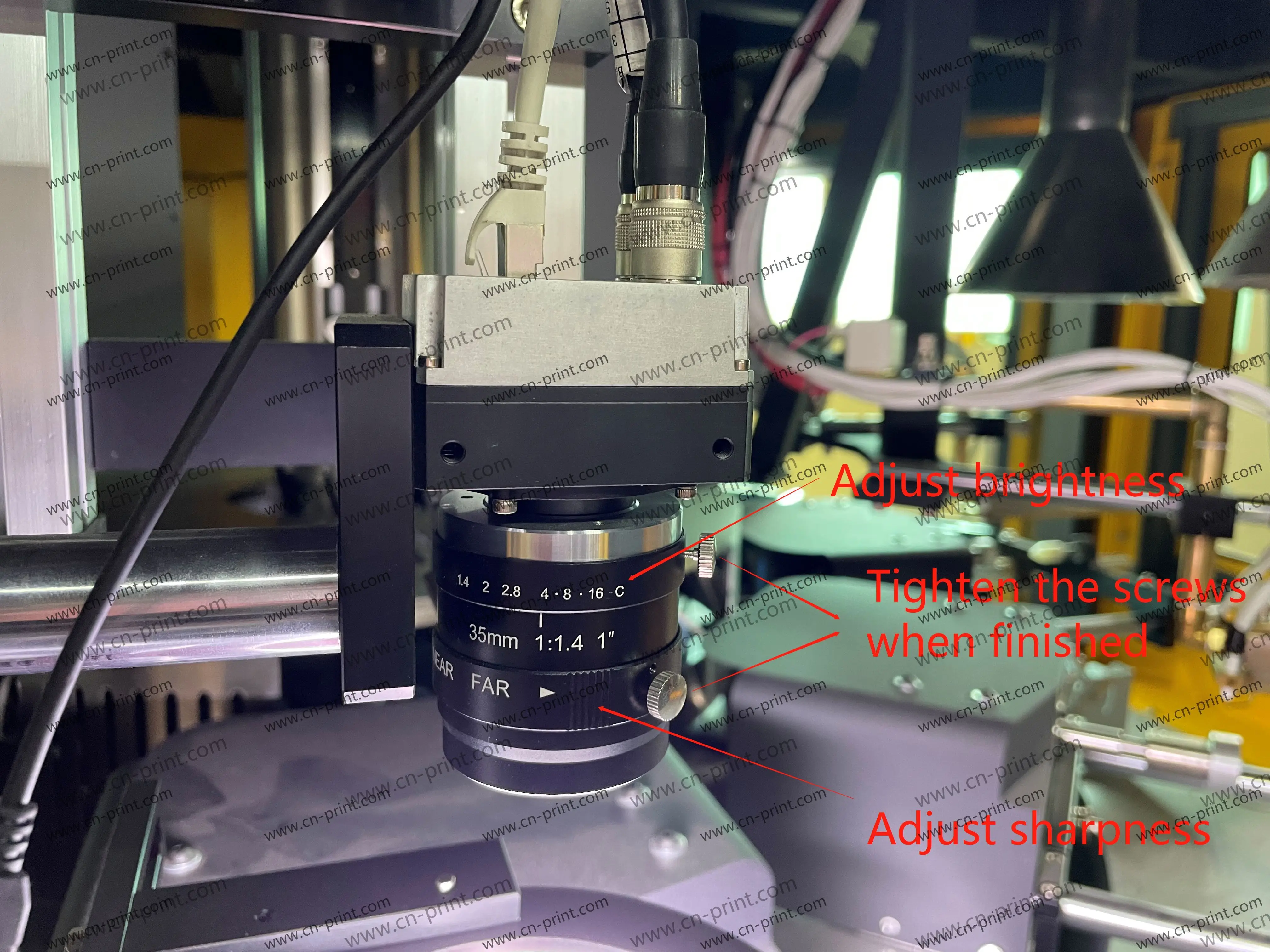

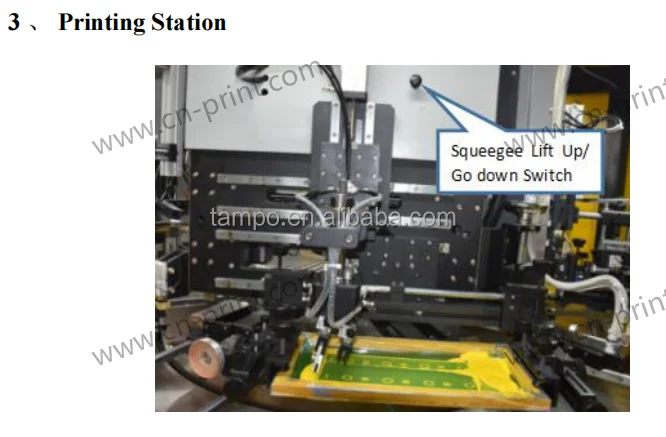

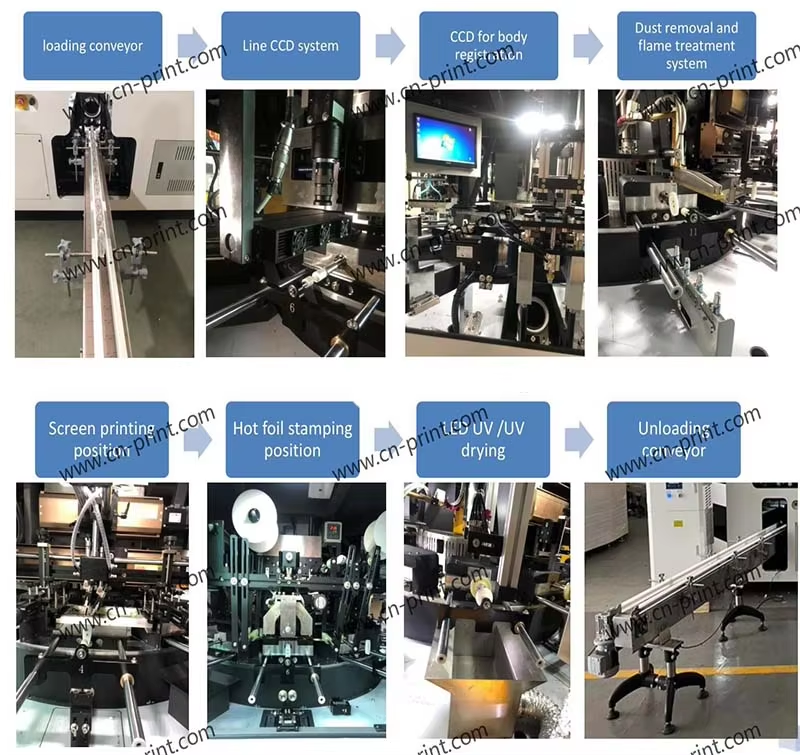

It is a screen printing machine specially developed for plastic bottles and glass bottles. After manually placing the bottles on the feeding conveyor belt, the mechanical gripper transfers the bottles to the printing tooling. At the same time, the CCD camera captures the bottom and body of the bottle and cooperates with the servo motor for precise positioning. Two silk printing stations and two colors are completed at the same time. . Then the robot clamps the finished bottle to the unloading line.
The machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high.

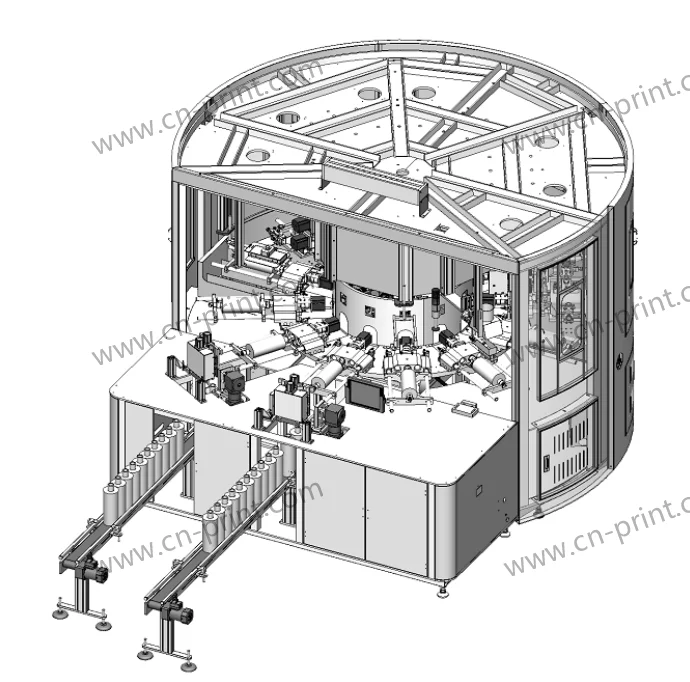

The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation.
It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.

Specification

item	value
Plate Type	Screen Printer
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other, Advertising Company
Condition	New
Place of Origin	GUA
Usage	Tube Printer, bottle cup jar tube printer
Automatic Grade	Automatic
Color & Page	Multicolor
Voltage	380V 50HZ
Dimensions(LWH)	5400x2000x1700mm
Weight	8000KG
Certification	CE
Warranty	1 Year
	Online support
Key Selling Points	Automatic
Video outgoing-inspection	Provided
Core Components	PLC, Pressure vessel, servo motor, CCD image positioning
Printing Product Shape	Round/Flat/Oval/Other
Max Product size	round diameter 100mm, length 310mm
