LC-TH-300DL Large size plane and round Heat transfer machine

Model No.︰LC-TH-300DL
Brand Name︰LC
Country of Origin︰China
Unit Price︰US $ 8200 / unit
Order︰1 unit

Product

Contect Us

Product Details

Large size plane and round Heat transfer machine

Advantages:

1 An electronic controller IC integrated multifunction procedures to ensure that the machine to roll stamping , round surface, such as a multi-purpose pressure round running.

2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3 Stamping pressure, temperature, hot pressing time is adjustable.

4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.

5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.

6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.

11 Equipped with emergency stop safety devices to protect the safety of the operator.

Specification

1.Plane Max Printing	250*300mm
2.Cylinder Max Printing	￠300mm
3.Length of Rubber Roller	150mm
4.Working table area	600*200 mm
5.Max pressure	1300 Kg
6.Up-and down distance	320 mm
7.Table Stroke	300 mm
8.Heat wattage	1600 W
9.Foil feed	Motor Drive
10.Temperature range	0 - 400℃
11.Net Weight	350 Kg
12.Outer dimension	11008501700 mm
13.Max Oil Pressure	70kgf/cm2'
14.Wattage	220V 50Hz
15.Air Pressure	0.5-0.7MPa
16.Stamping speed	1000P/hour

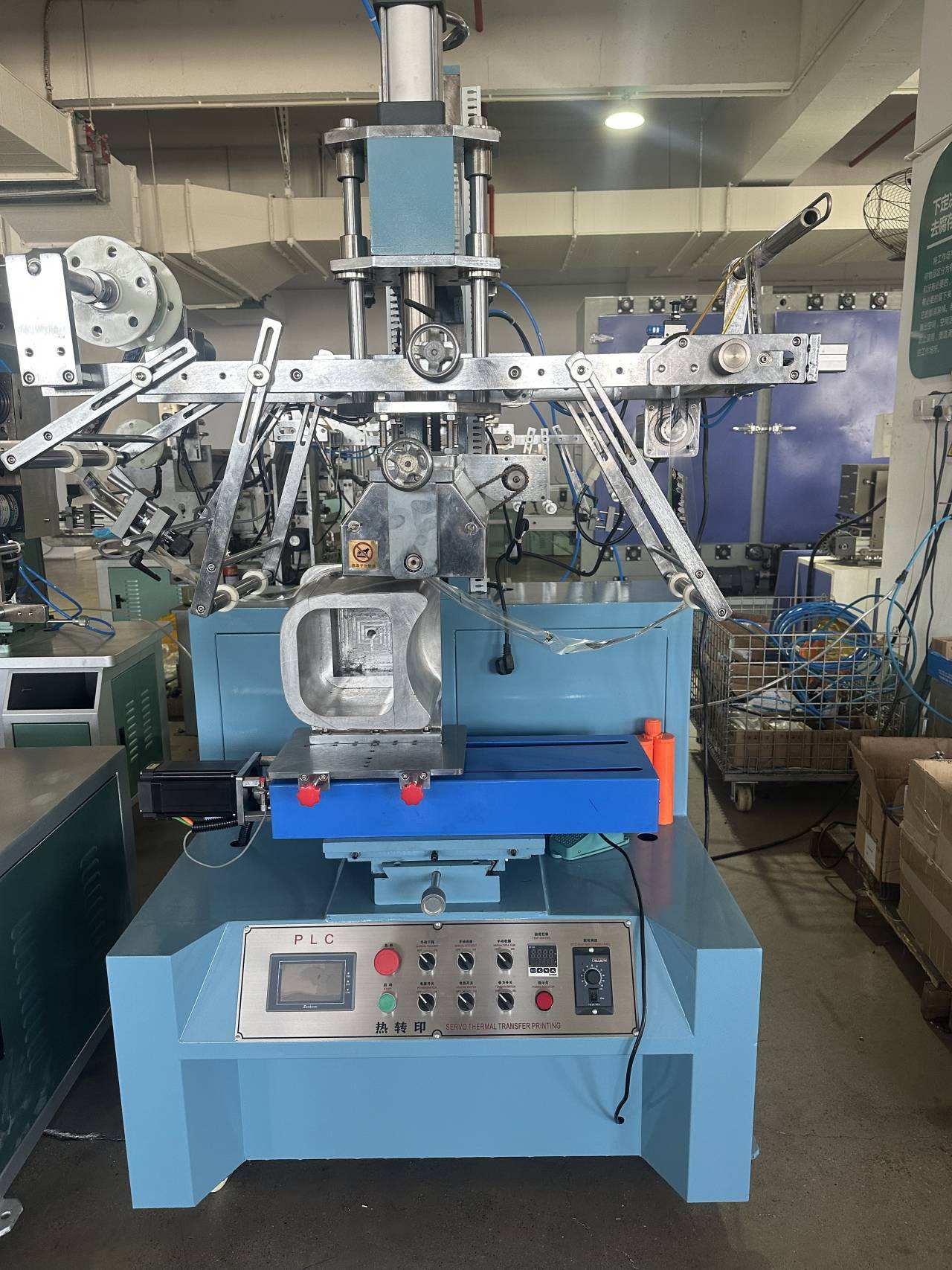

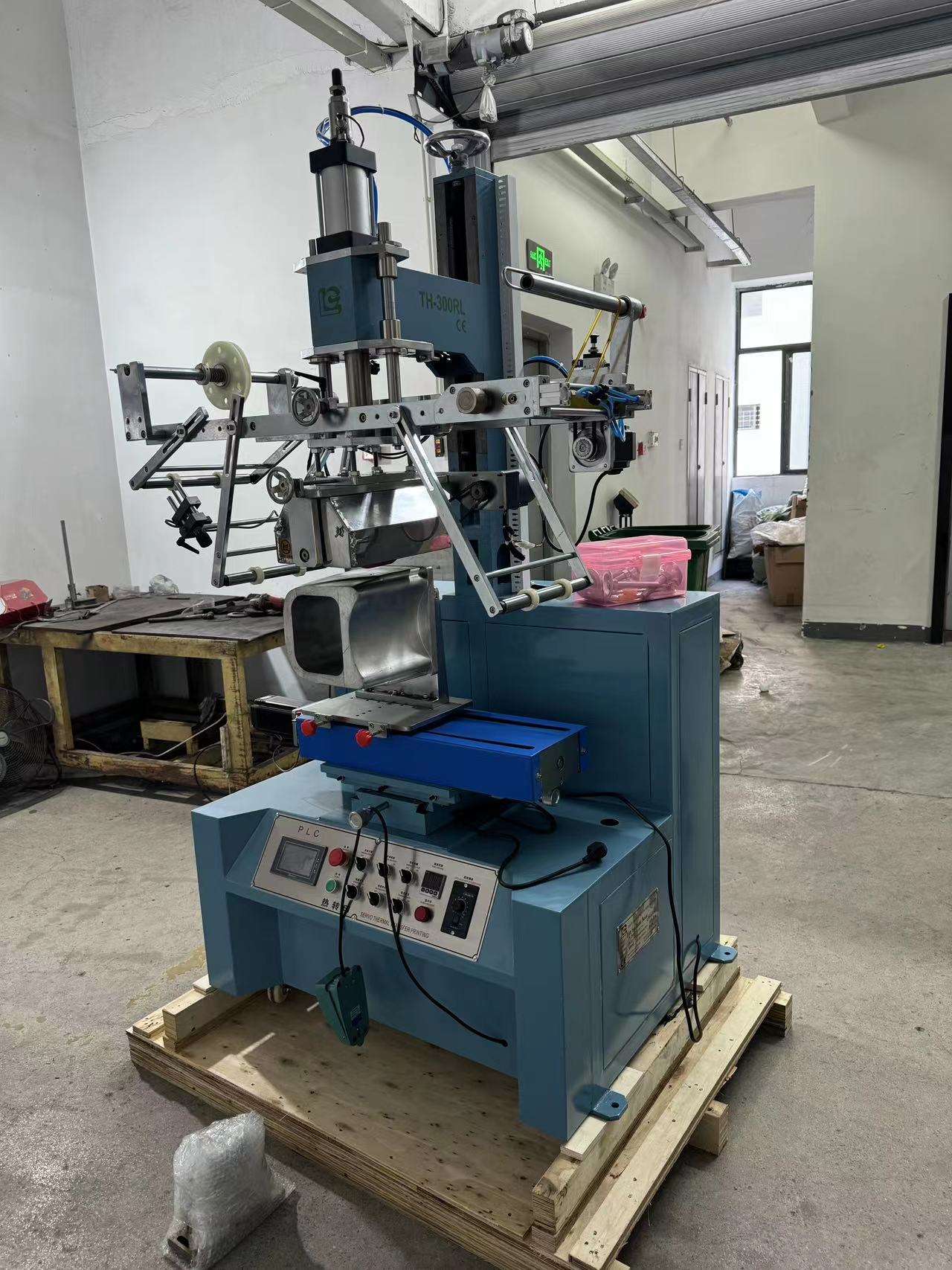

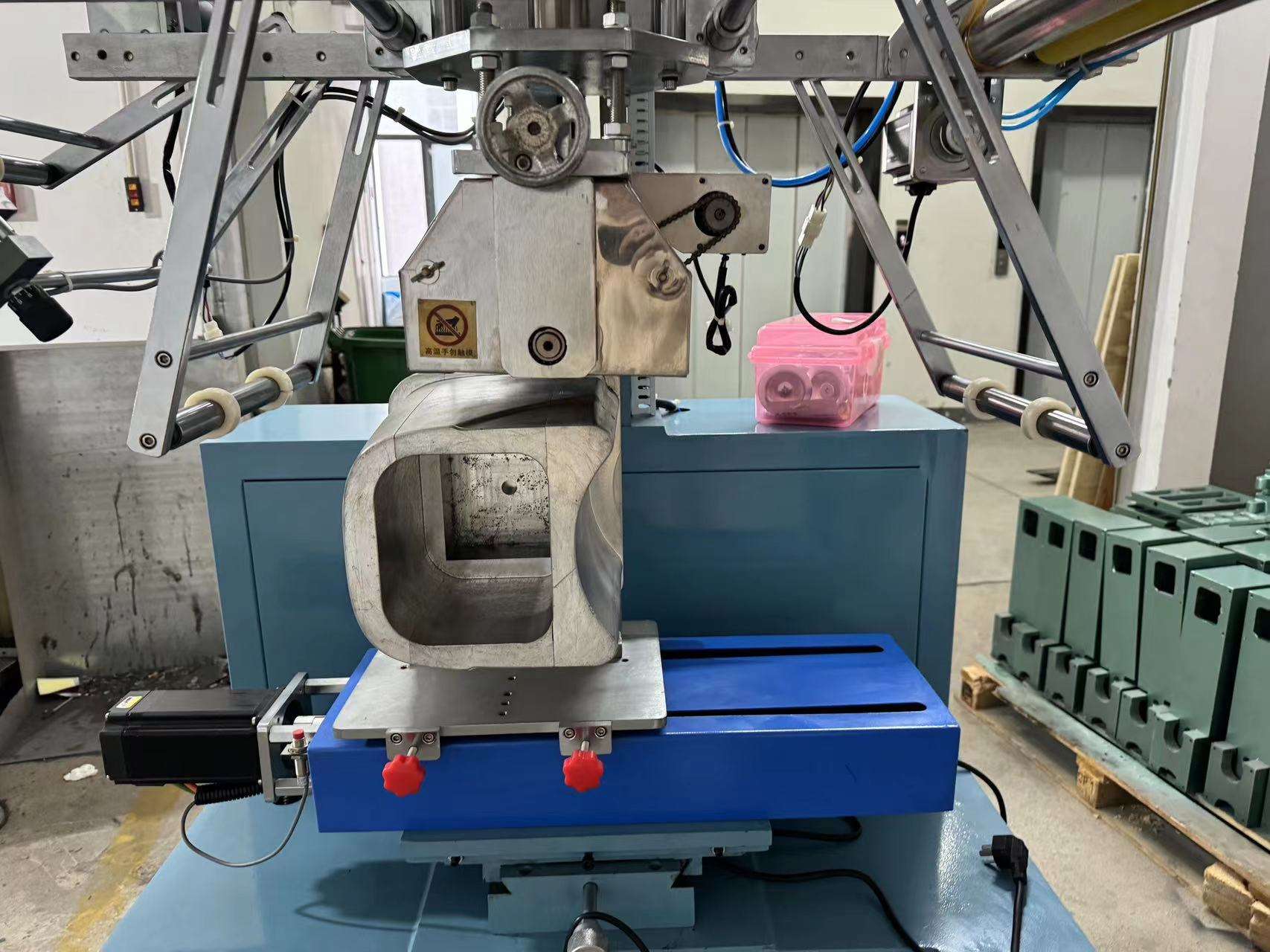

Machine Picture

Features:

1. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

2. Stamping pressure, temperature, hot pressing time is adjustable.

3. Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation..

4. Automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

5. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

6. Equipped with emergency stop safety devices to protect the safety of the operator.
